BSIDE

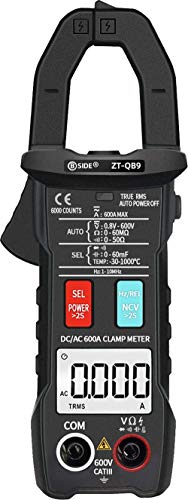

BSIDE Digital Clamp Meter 1mA AC/DC Current True RMS Auto-Ranging 6000 Counts Meter Hz Temperature Capacitance Live Check V-Alert Low Impedance Voltage Tester

BSIDE Digital Clamp Meter 1mA AC/DC Current True RMS Auto-Ranging 6000 Counts Meter Hz Temperature Capacitance Live Check V-Alert Low Impedance Voltage Tester

通常価格 $39.80
通常価格 $49.99 セール価格 $39.80
セール 売り切れ
Color

Features:

  • [1mA Sensitivity]: 1mA sensitivity when measures AC/DC current by clamp.
  • [Dual Line Display]: Dual line display can show both AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
  • [Low Impedance Mode]: Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
  • [Activate V-Alert at Any Function]: Activate V-Alert (non-contact voltage detection) function under any function design makes non-contact voltage testing more convenient.

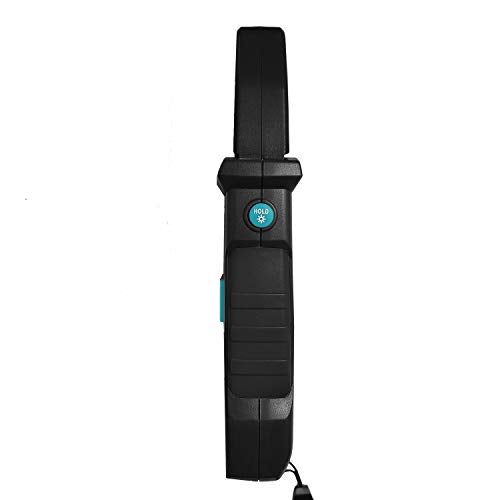

  • [Back Clip Design]: Back clip design make it more portable, hang on your belt or pocket.

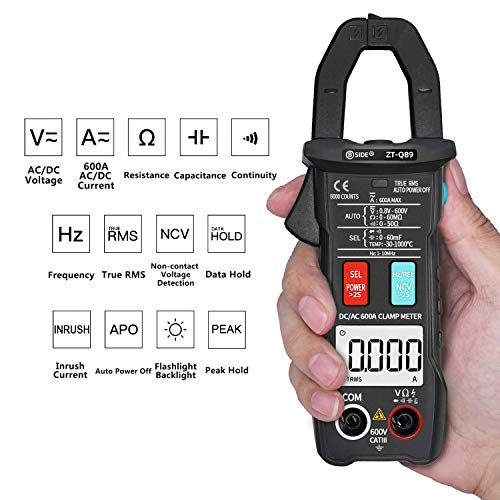

Details: Features: Measure AC/DC current (minimum 1mA by jaws) Measure microamps μA (minumum 0.1μA by terminals) Measure AC/DC voltage V-alert measurement, live-wire check Measure frequency, temperature, resistance, continuity and capacitance Low impedance voltage measurement Clamp on frequency function Auto range, Auto power off, data hold, low battery indication with backlight Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II Specifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts) DC current(μA): 0-200μA 0.1μA ±(0.8%+5counts) AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts) DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) Low impedance LOZ: Max 600V Resolution 0.1V Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts) 60MΩ 0.01MΩ ±(1.2%+20counts) Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds Temperature: -20℃~500℃ 1℃/2℉ ±(2.0%+2counts) Jaw Capacity: 20mm Power: 1.5V (AAA) x 2 (not included) Size: 179 x 67 x 36 mm Weight: 137g Package Includes: 1 x Digital Clamp Meter 1 x Probes 1 x Thermocouple 1 x Carrying Case 1 x Screwdriver 1 x User Manual Note: The batteries are not included in the package due to Aviation Security Check

詳細を表示する
