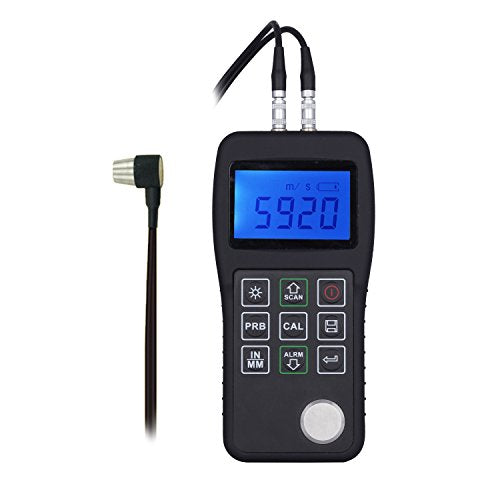

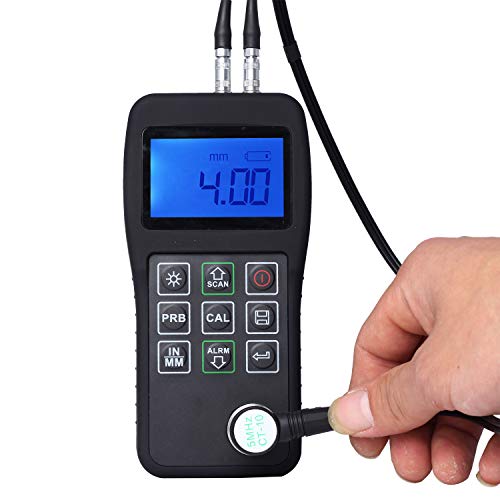

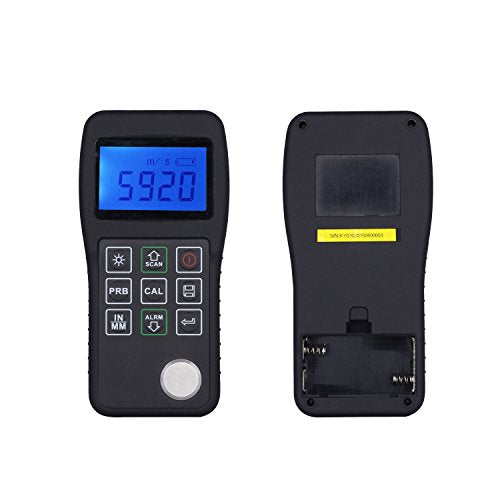

BSIDE CCT11 Digital Ultrasonic Thickness Gauge Tester Meter 0.75-300mm for Metal Steel Aluminum Copper Plastic

Color: Ultrasonic Thickness Gauge

Features:

• [Ultrasonic Thickness Gauge]: Used to measure a variety of metallic and non-metallic materials. Such as steel, aluminum, ceramics, composites, epoxies, brass, copper, iron, plastic, PVC, glass, etc.
• [Wide Application]: Wide application in Petroleum, Chemical, Metallurgy, Shipbuilding, Aerospace area.
• [High Accuracy]: Measuring range: 0.75-300mm; Resolution: 0.01mm; Accuracy: ±(0.5%+0.04)mm. Inch/mm units switchable.
• [Various Functions]: Two point calibration, probe-zero and sound-velocity-calibration function, Auto power off, low capacity indication.
• [Software Included]: Memory data can be processed and downloaded through specified software, also can be printed through specified printer.

Details: Features: - Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials - Transducer models are available for special application, including for coarse grain material and high temperature applications - Probe-Zero function, Sound-Velocity-Calibration function - Two-Point Calibration function - Work modes: Single point mode and scan mode - Coupling status indication - Optional thermal mini-printer to print the measured data via RS232 port for B - Battery capacity indication - Auto power off - Backlight Specifications: - Display: LCD - Measuring range: 0.75-300mm (steel) - Speed range: 1000-9999 m/s - Resolution: 0.01mm - Accuracy: ±(0.5%+0.04) mm - Units: Metric/Imperial - Measurement period: 4 times per second for single mode, 10 times per second for scan mode - Storage: Up 20 files (up to 99 values for each file) thickness measurement data - Operating Temperature: －20℃-60℃ - Storage Temperature: -30℃-70℃ - Relative Humidity ≤90％ - Power: 1.5V (AA) * 2 (Not Included) - Size: 151 x 75 x 33 mm - Weight: 248g Package Includes: 1 * Ultrasonic Thickness Gauge 1 * Transducer 1 * Durable Box 1 * User Manual Note: The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused

EAN: 6933540311678

Item Condition: New
