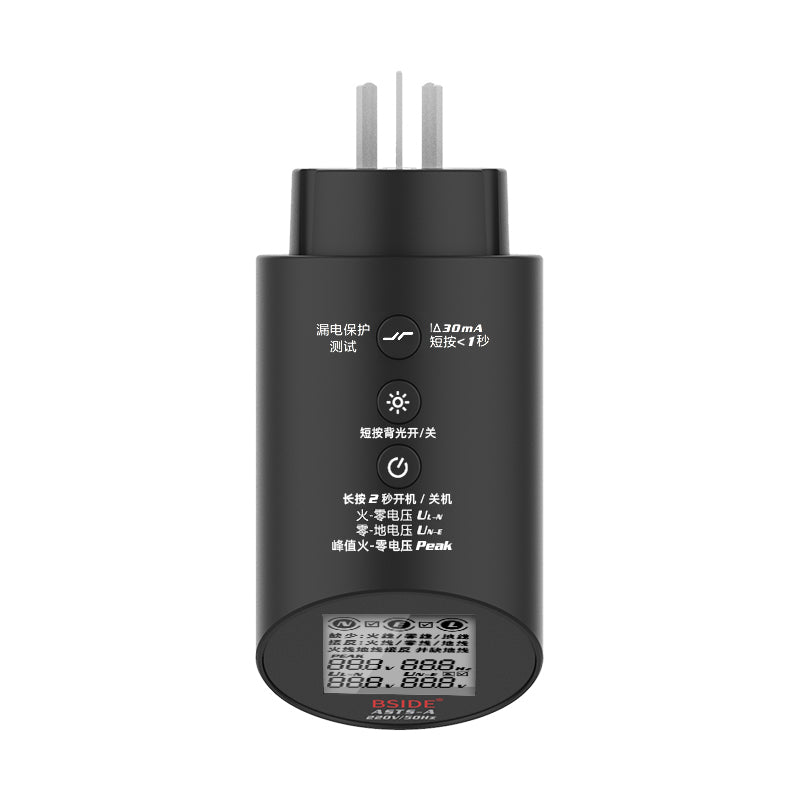

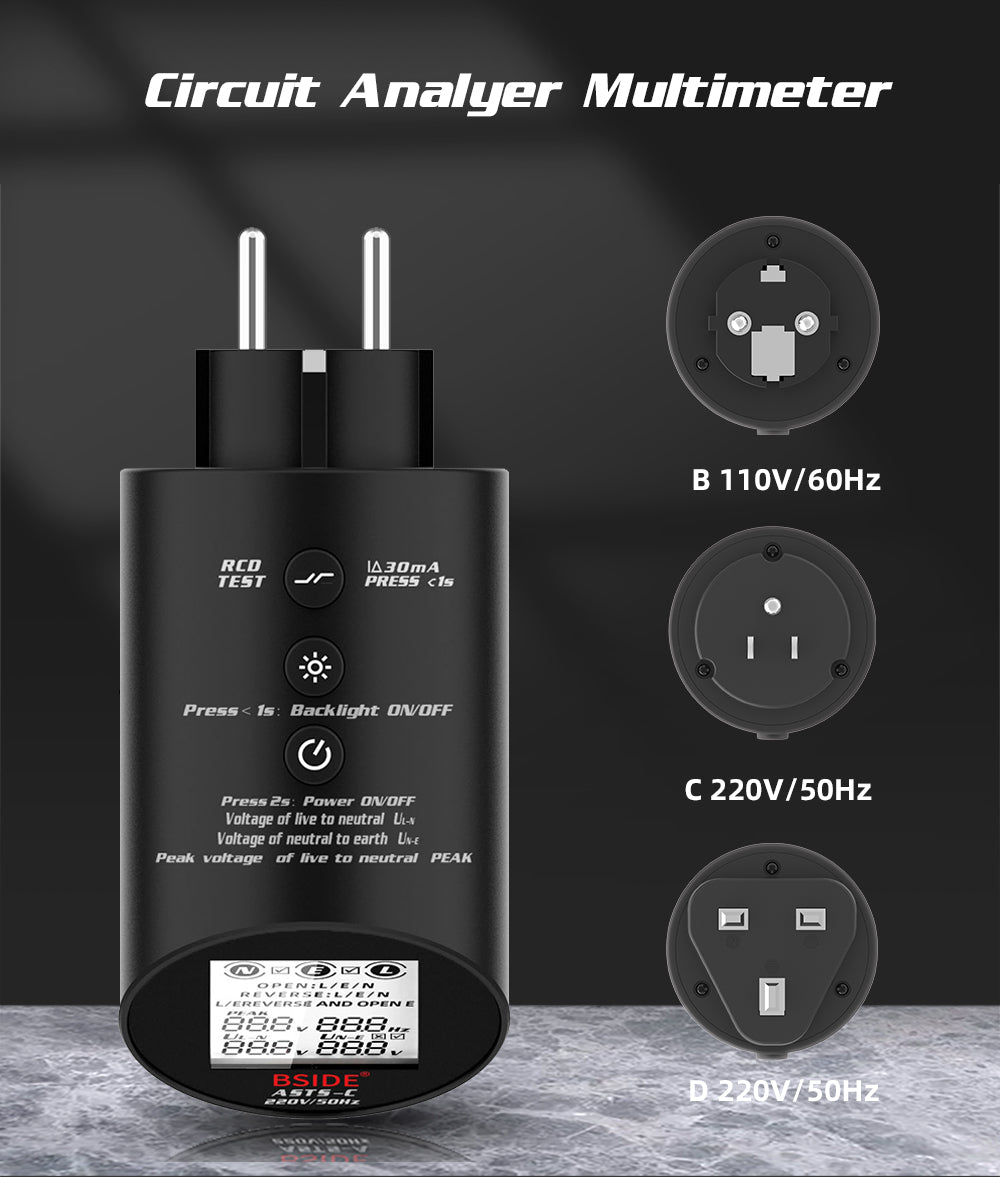

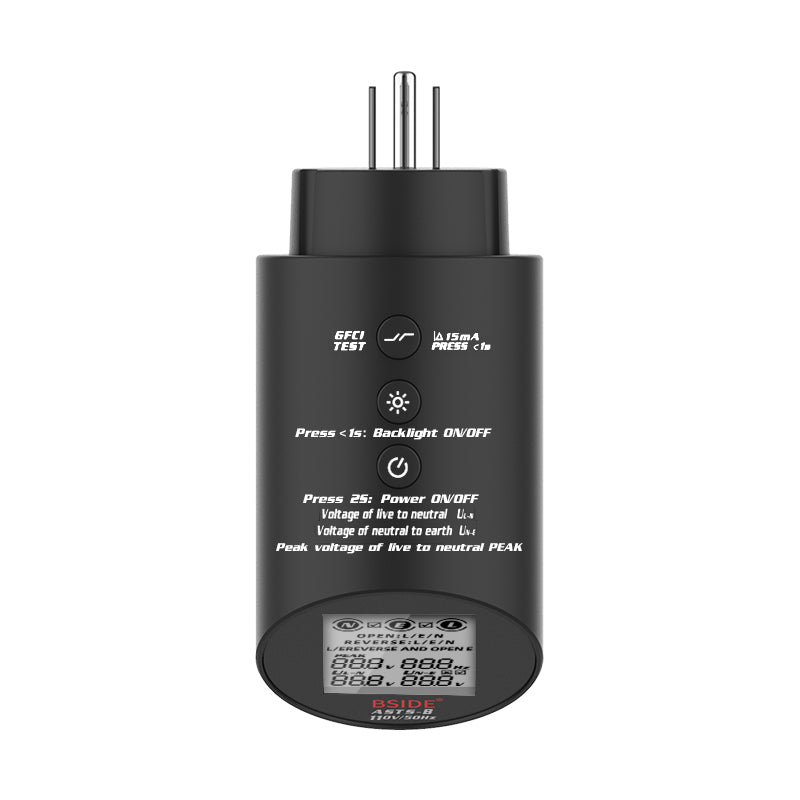

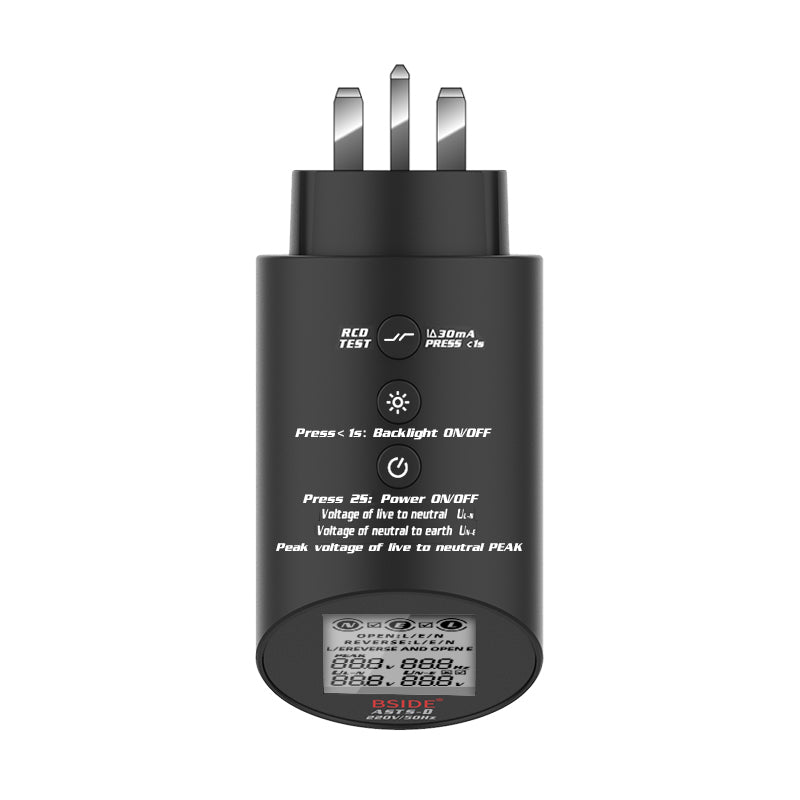

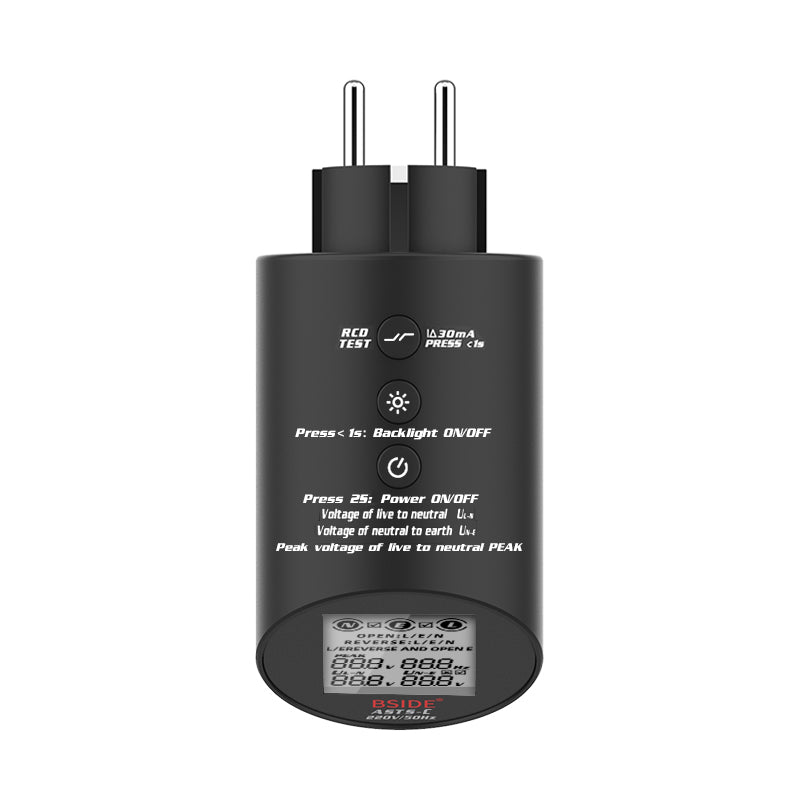

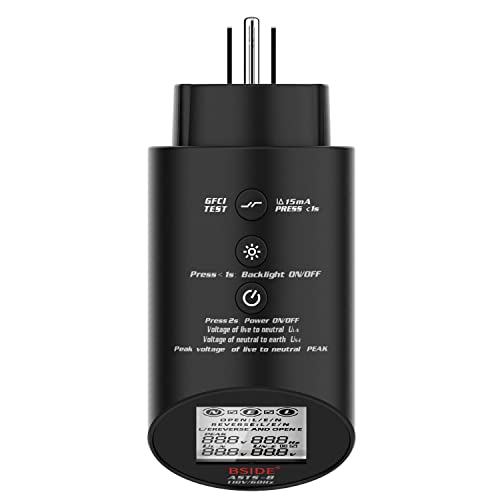

BSIDE ASTS Circuit Analyzer, Professional Wiring Status Tester, Line Voltage Distribution Checker, Large LCD Circuit Fault Locator GFCI Leakage Socket Tester

Color: Red

Features:

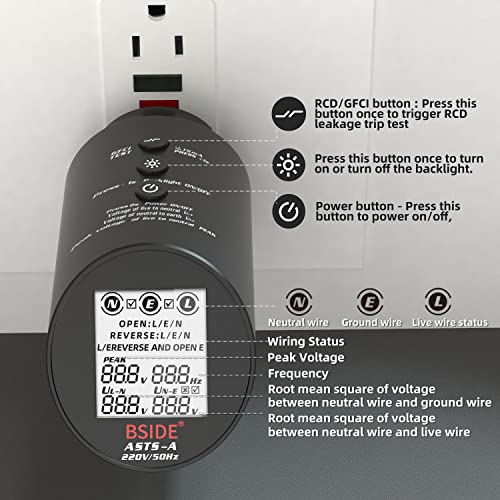

• [Professional Circuit Analyzer]: Mainly used to analyze various wiring status; the RMS & peak voltage between neutral wire & live wire, the frequency, the voltage between neutral live and ground wire; test leakage trip protection switch.

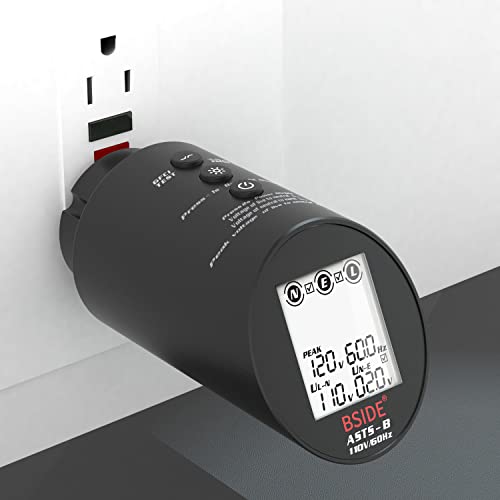

• [Easy to Use]: Plug and test, this tester can automatically complete most of the tests and display the results when it is connected to the tested socket. Easy to understand the test results according to the guide printed on the side of the product.
• [Powerful Functions]: Test wire voltage distribution and fast locate line fault, test the peak voltage and frequency, phase voltage TRMS value, etc.

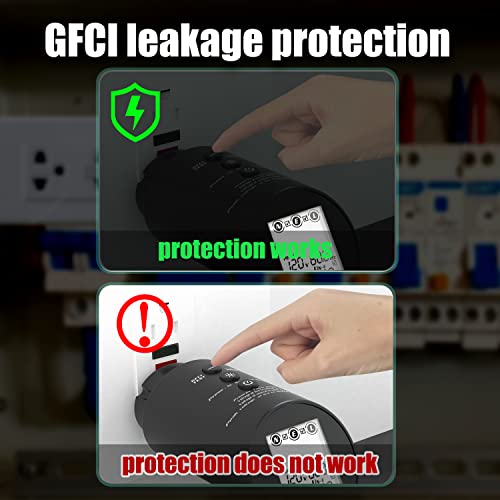

• [GFCI Test]: GFCI test button is used to check whether the trip function for GFCI is active or not.
• [Dual Mode Alarm]: Backlight flashing red, and continuous beeping sounds alarm greatly enhance the test experience.

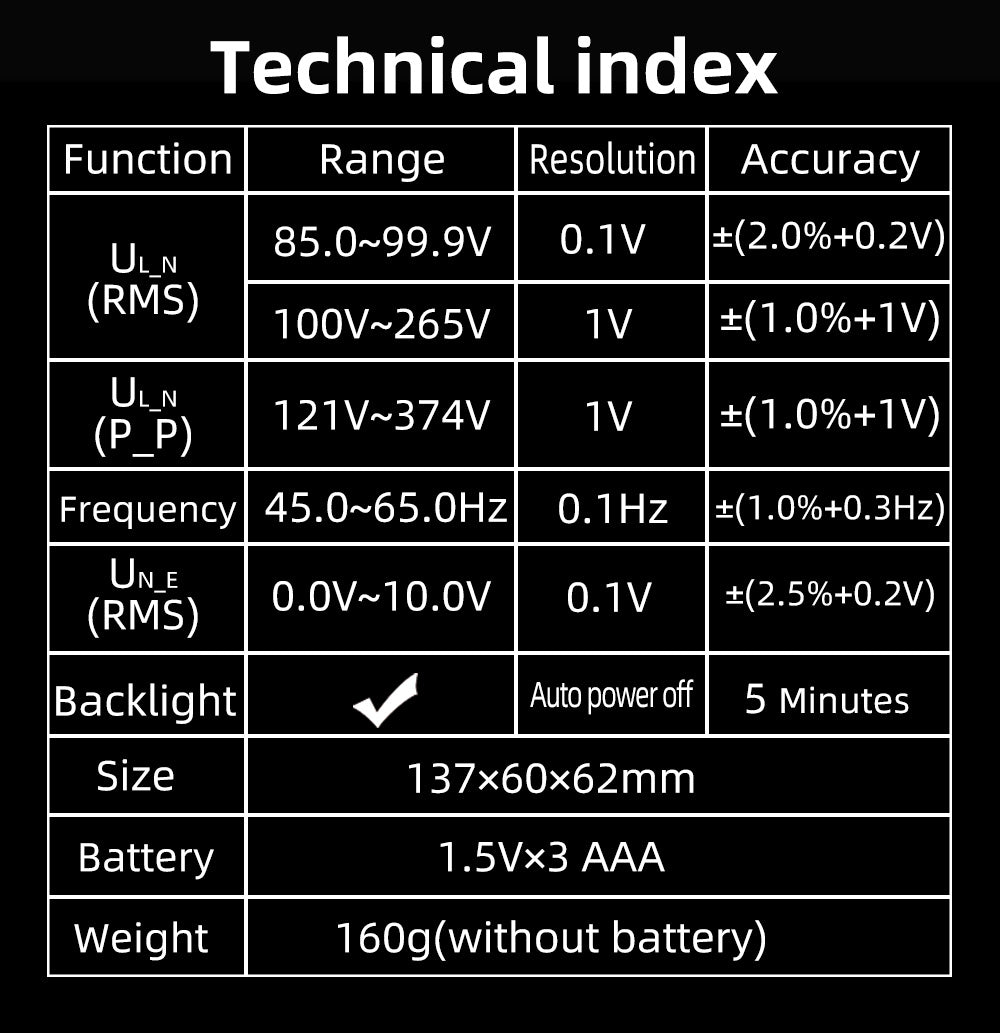

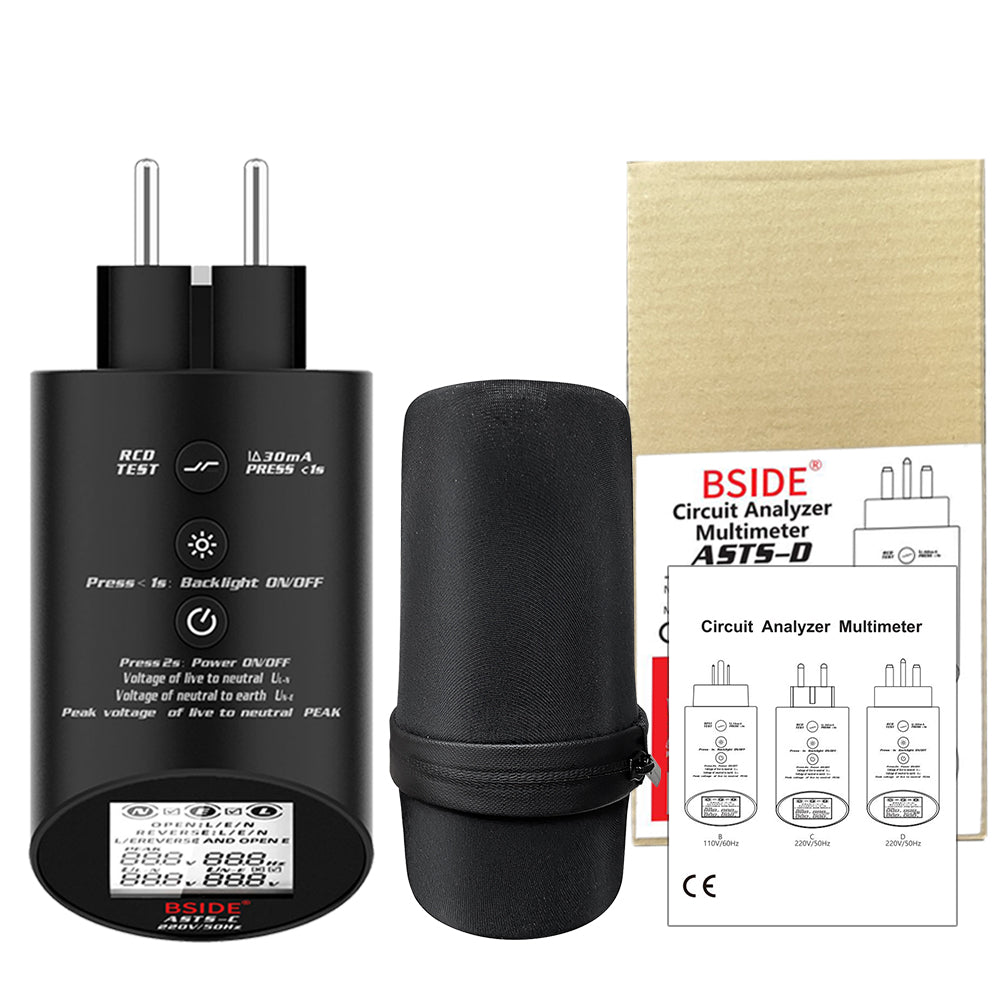

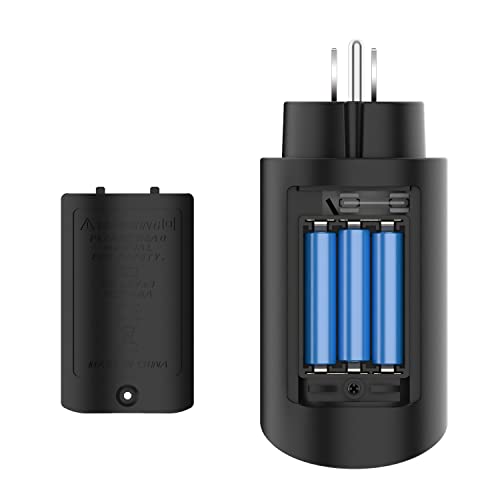

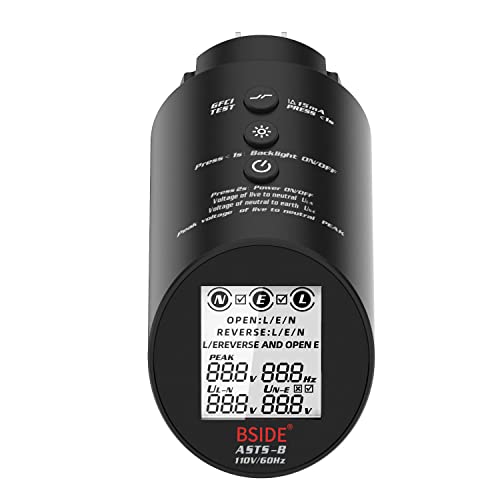

Details: Features: Test socket wiring status Test phase voltage TRMS value Test the peak voltage voltage and frequency Large LCD display Backlight and low battery indication Specifications: Plug Type: US Standard Voltage: 85V-265V(50/60Hz) UL_N(RMS): 85.0-99.9V/0.1V ±(2.0%+0.2); 100-265V/1V ±(1.0%+1 ) UL_N(P_P): 121-374V/1V±(1.0%+1 V) Frequency: 45.0-65.0Hz/0.1Hz±(1.0%+0.3) UN_E(RMS): 0.0-10.0V/0.1V±(2.5%+0.2) Work height: maximum 2000m Power: 1.5V (AAA) * 3 Size: 137×60×62mm Weight:160g Package Includes: 1 * Circuit Analyzer 1 * User Manual Note: The batteries are not included in the package due to Aviation Security Check

EAN: 6933540315317

Item Condition: New
