BSIDE
BSIDE DC Power Supply Programmable Adjustable Switching Regulated Lab Power Supply Small Variable Bench Power Supply with Encoder and USB DC Output Power Supply
BSIDE DC Power Supply Programmable Adjustable Switching Regulated Lab Power Supply Small Variable Bench Power Supply with Encoder and USB DC Output Power Supply
通常価格
$99.99
通常価格
$120.00
セール価格
$99.99
単価
あたり
受取状況を読み込めませんでした
- Programmable: Small DC Power Supply with USB-B Port, you can quickly and accurately adjust the voltage/current, set multiple memory values, export data table/chart through your computer; with hardware list, with programmable sequence output and so on.
- Memory storage, key: Variable DC power supply with 3 sets of data storage buttons, M1, M2, M3, you can set the commonly used data for storage as a shortcut parameter, and then turn on the DC power supply can be used again with one key, very convenient. With menu button, with up and down buttons can set U/I shortcut parameters.
- Precision encoder knob and direction key: Unlike other DC power supplies this adjustable power supply can be adjusted using two ways: high precision knob and direction key, which can meet different usage habits, support coarse and fine adjustment, and can set the required voltage or current more precisely. Make your work more flexible and efficient.
- TFT color screen multifunction display: 360° full viewing angle, high-precision 4-digit display, can display voltage (output voltage set value and actual output value), current (output current set value and actual output value), actual output power, cumulative execution time, channel output status, OCP/OVP switching status. Very intuitive and easy to understand.
- Output enable/disable button: The output button prevents you from forgetting to turn off the output and causing damage to the load when using the bench DC power supply for experiments or work. Simply press this button to turn the power supply's output on or off. This makes it easier for you to work with dc Output power supplies.
- Features:
Programmable, with USB-B port on the back, connect to PC for remote control or automation control. Support USB, RS232, RS485 three kinds of interface, if you need please contact us.
Adjustable and stable DC power supply with two adjustment methods: high-precision knob and directional key

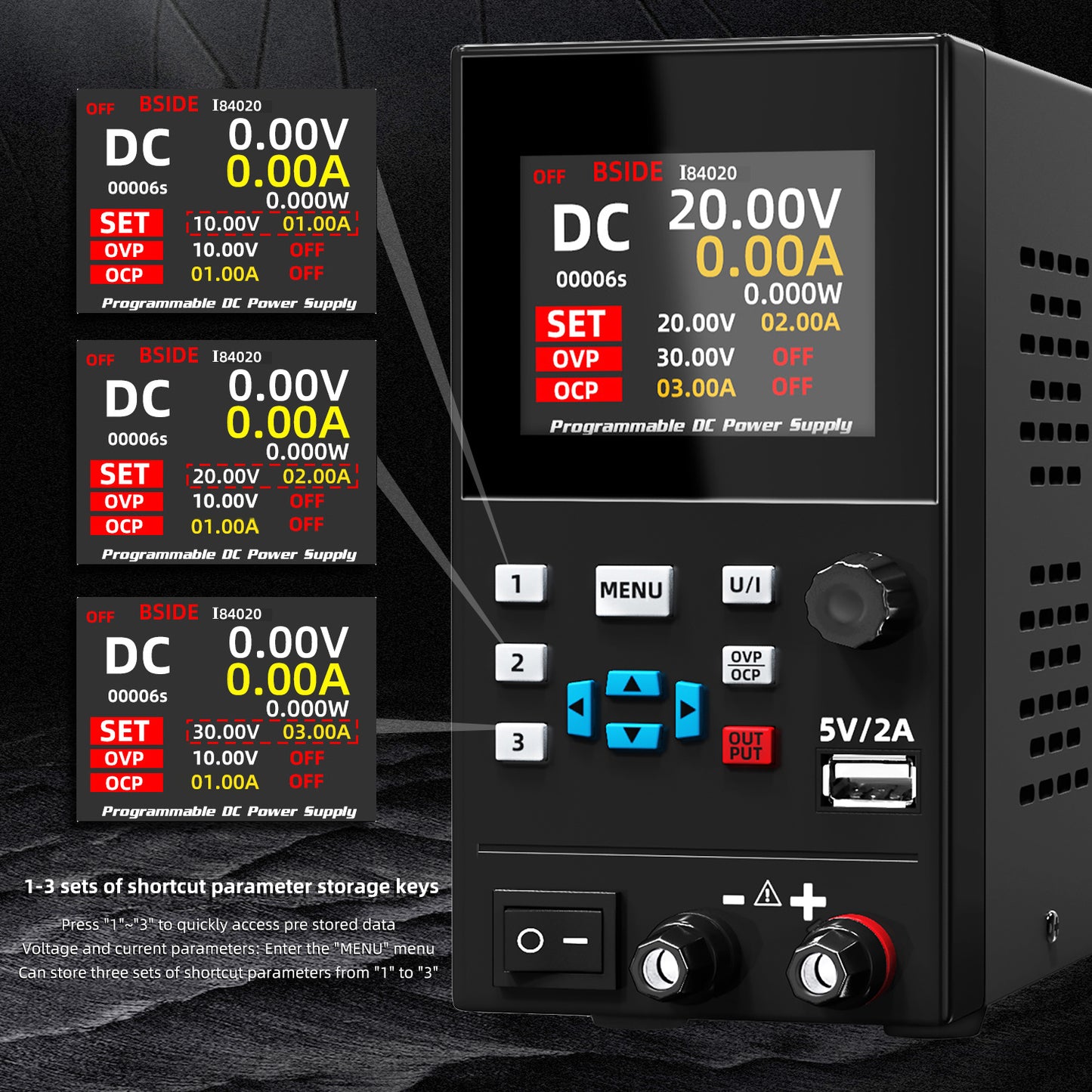

3 sets of quick parameter storage keys: can preset the voltage and current values when the output is turned off, and can quickly call up the pre stored values of M1M2M3, making it convenient and flexible
It has four protection functions: overvoltage protection (OVP), overcurrent protection (OCP), over temperature protection (OTP), and overload protection (OPP)
Front 5V2A USB charging interface. One click output on/off, one click voltage and current stabilizing switch, automatic locking menu key to prevent incorrect operation
TFT Color LCD 4-digit, 6-line display, full view view
The panel can simultaneously display the output status, output current, voltage, power, and display time, as well as the switch status of overvoltage protection (OVP)/overcurrent protection (OCP)
Can support global voltage adjustment: 110V/220V
Constant current and voltage switching, accurate output
Low ripple and low noise
Compact and lightweight, space-saving and easy to carry.
Specifications:
Output voltage: 0-32V, output current: 0-10A
Resolution: 10mV(≤0.1%+5 digits );1mA(≤0.1%+10digits )
Ripple: ≤10mVrms, ≤10mArms
Load/power regulation rate: ≤0.2%Vmax+5mV
Max voltage: 32V
Max current: 10.1A
OVP:0-33V
OCP: 0-10.5A
Working Voltage: AC220V±10% 50Hz or AC110V±10% 60Hz
Size: 230 * 80 * 150mm
Weight: 1.46kg
Packaging content:
DC output power supply
Power cord
User manual
Testing line
Banana plug test leads
