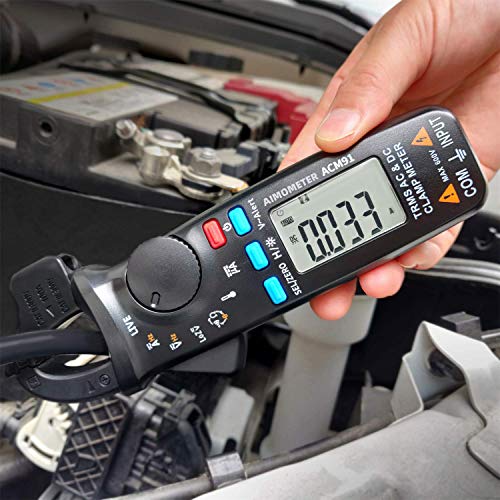

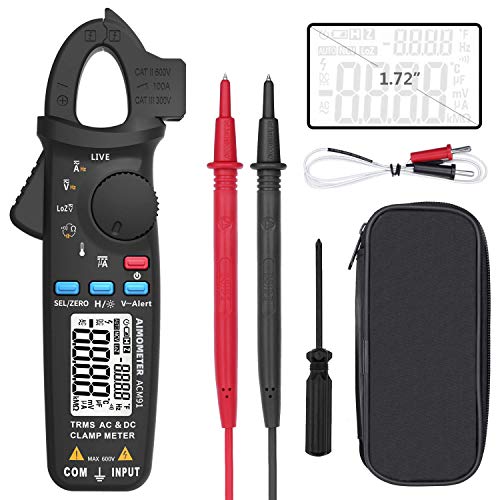

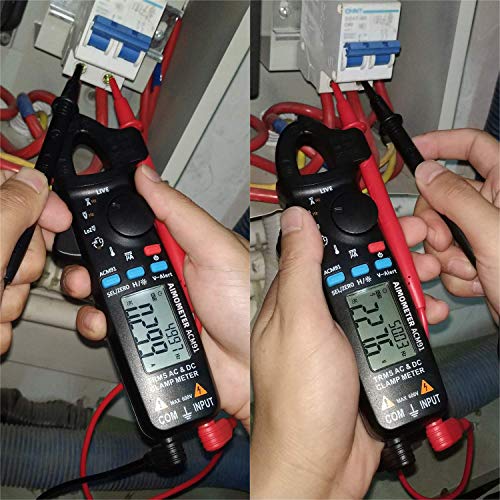

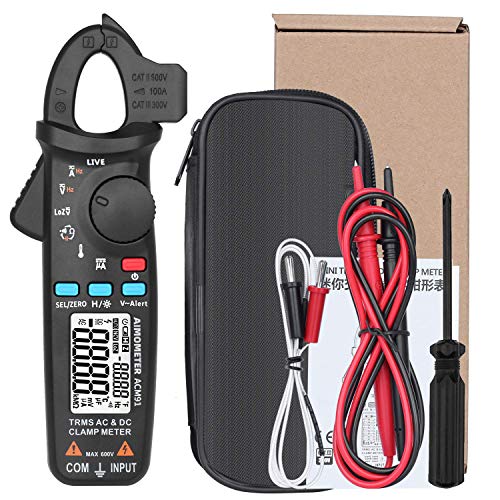

BSIDE ACM91 DC Current Clamp Meter True RMS 6000 Counts Auto-Ranging Ammeter Volt Amp Hz Ohm Temp Cap Tester

BSIDE ACM91 DC Current Clamp Meter True RMS 6000 Counts Auto-Ranging Ammeter Volt Amp Hz Ohm Temp Cap Tester

Regular price $39.90
Regular price $49.90 Sale price $39.90
Sale Sold out

Color: ACM91

Features:

  • [1mA Resolution]: 1mA resolution when measures AC/DC current by clamp.

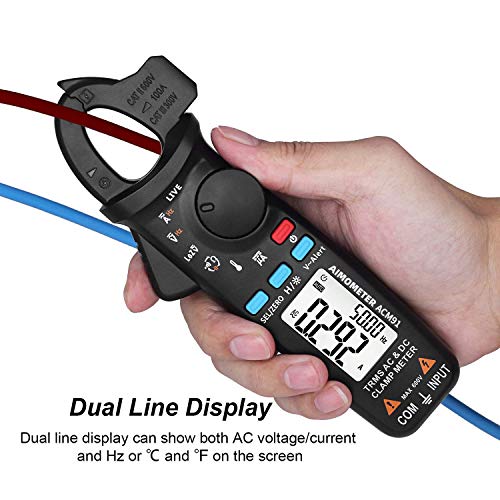

  • [Dual Line Display]: Dual line display can show both AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
  • [Low Impedance Mode]: Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.

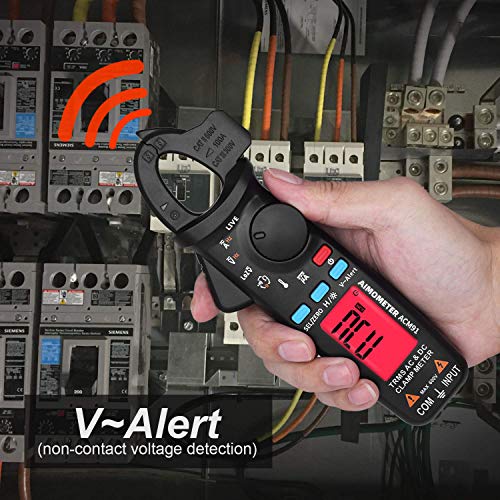

  • [Activate V-Alert at Any Function]: Activate V-Alert (non-contact voltage detection) function under any function design makes non-contact voltage testing more convenient.

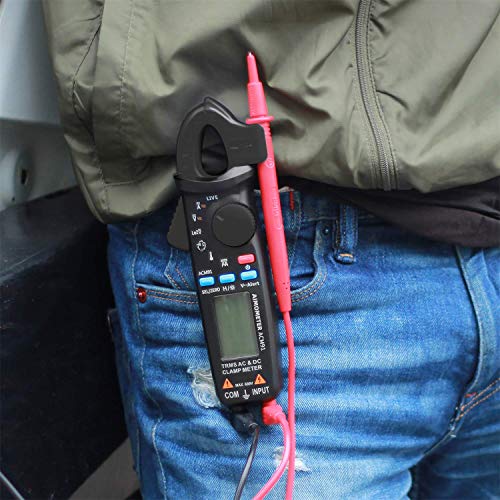

  • [Back Clip Design]: Back clip design make it more portable, hang on your belt or pocket.

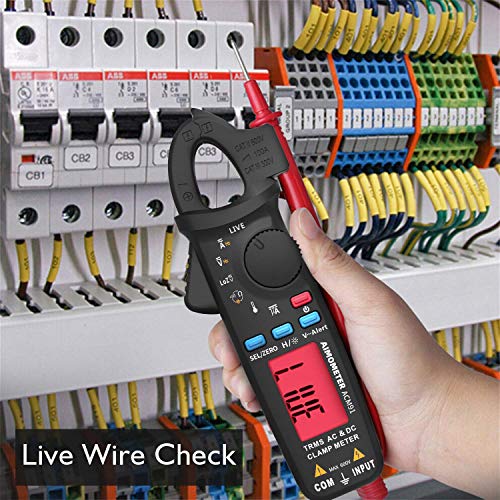

Details: Features: - Measure AC/DC current (minimum 1mA by clamp) - Measure microamps μA (minumum 0.1μA by terminals) - Measure AC and DC voltage - Live wire check, V-alert measurement - Measure frequency, temperature, resistance, continuity and capacitance - Low impedance voltage measurement - Clamp on frequency function - Auto range, Auto power off, data hold, low battery indication - Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards - Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II Specifications: - Display: 6000 counts - DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5) - DC current(μA): 0-200μA 0.1μA ±(0.8%+5) - AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5) - DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3) - AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3) - Low impedance LOZ: Max 600V Resolution 0.1V - Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3) 60MΩ 0.01MΩ ±(1.2%+20) - Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3) - Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5) - Frequency(by clamp): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5) - Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds - Temperature: -20°C~500°C 1°C/2°F (2.0%+2) - Clamp Capacity: 20mm - Power: 1.5V (AAA) x 2 - Size: 179mm x 67mm x 36 mm - Weight: 137g Package Includes: 1 x Clamp Meter 1 x Test Leads 1 x Thermocouple 1 x Carrying Case 1 x Screwdriver 1 x User Manual Note: The batteries are not included in the package due to Aviation Security Check

EAN: 6933540313764

Item Condition: New
