BSIDE O1X Handheld Oscilloscope Multimeter Professional Digital Oscilloscope DC AC Voltage Current Capacitor Ohm Diode Hertz Tester

BSIDE O1X Handheld Oscilloscope Multimeter Professional Digital Oscilloscope DC AC Voltage Current Capacitor Ohm Diode Hertz Tester

Regular price $64.80
Regular price $89.00 Sale price $64.80
Sale Sold out
BSIDE O1X New Graph Multimeter Handheld Oscilloscope Professional Digital Multiteter DC AC Current Capacitance Ohm Diode Hz Tester.

Product Introduction:

[Multimeter Tester Mode]: BSIDE digital multimeter tester measures MAX/MIN/AVG value, capacitance, ac and dc current, diode, ac and dc voltage, resistance, frequency, continuity and v-alert.

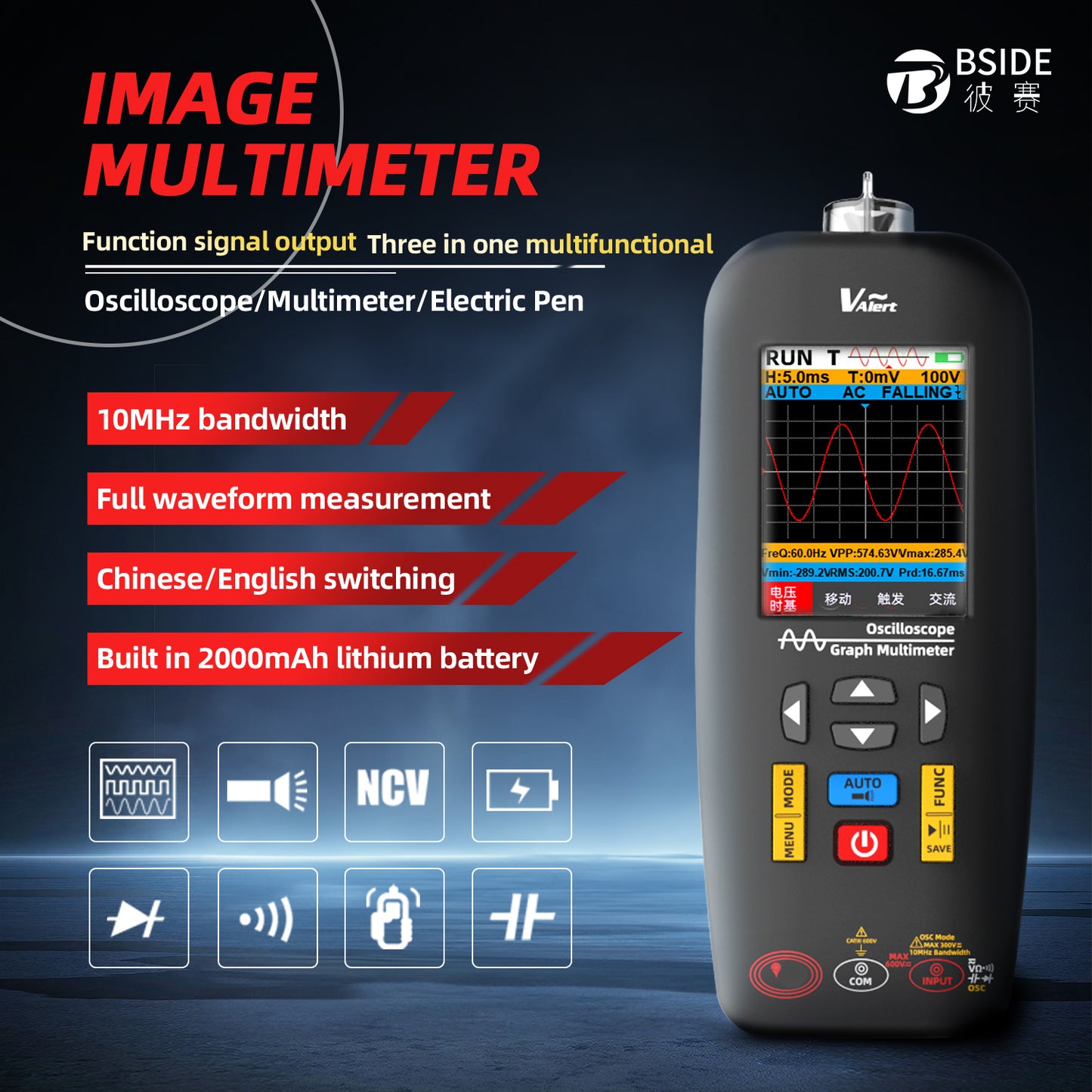

[Oscilloscope Mode]: The smart digital multimeter also can be used as a oscilloscope, it features 10MHz bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.

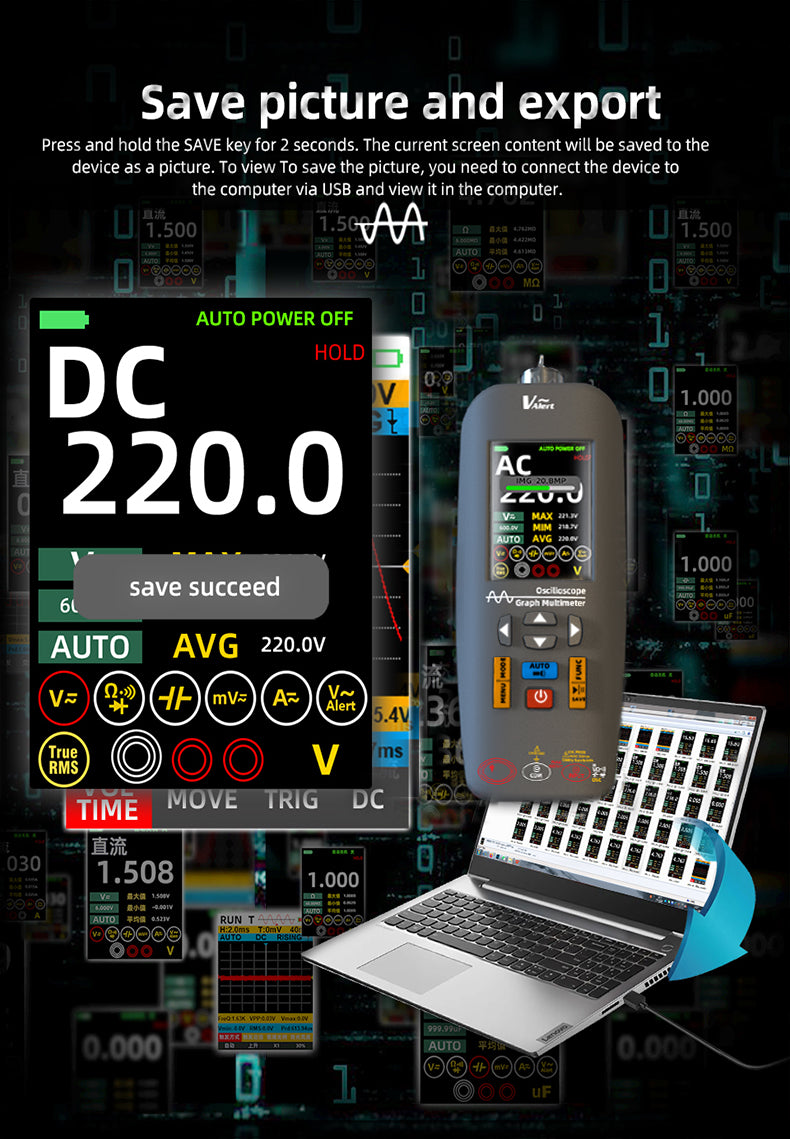

[Data Storage and Export]: The data of this graph oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.

[Rechargeable]: The handheld oscilloscope multimeter come with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.

[Carrying Case]: The digital oscilloscope multimeter comes with a high quality carrying case, perfect for use while you're on the go.


Features:

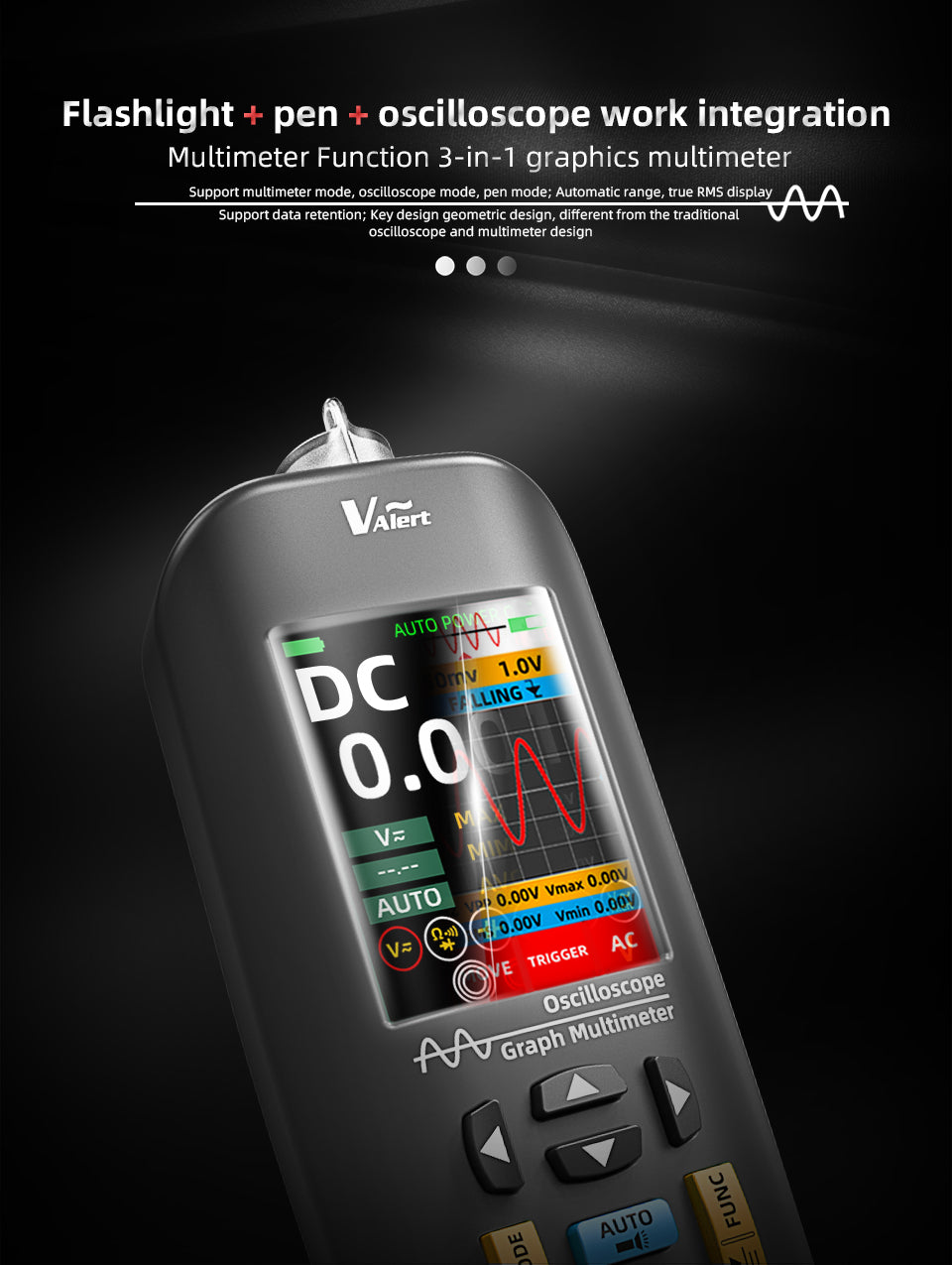

2-in-1 oscilloscope multimeter
Portable color display voltmeter
Rechargeable graph scope tester
True rms digital multimeter tester
Measures capacitance, ac/dc current, diode
Measures ac/dc voltage, continuity, resistance and v-alert
Tested data is storaged and exported to your computer

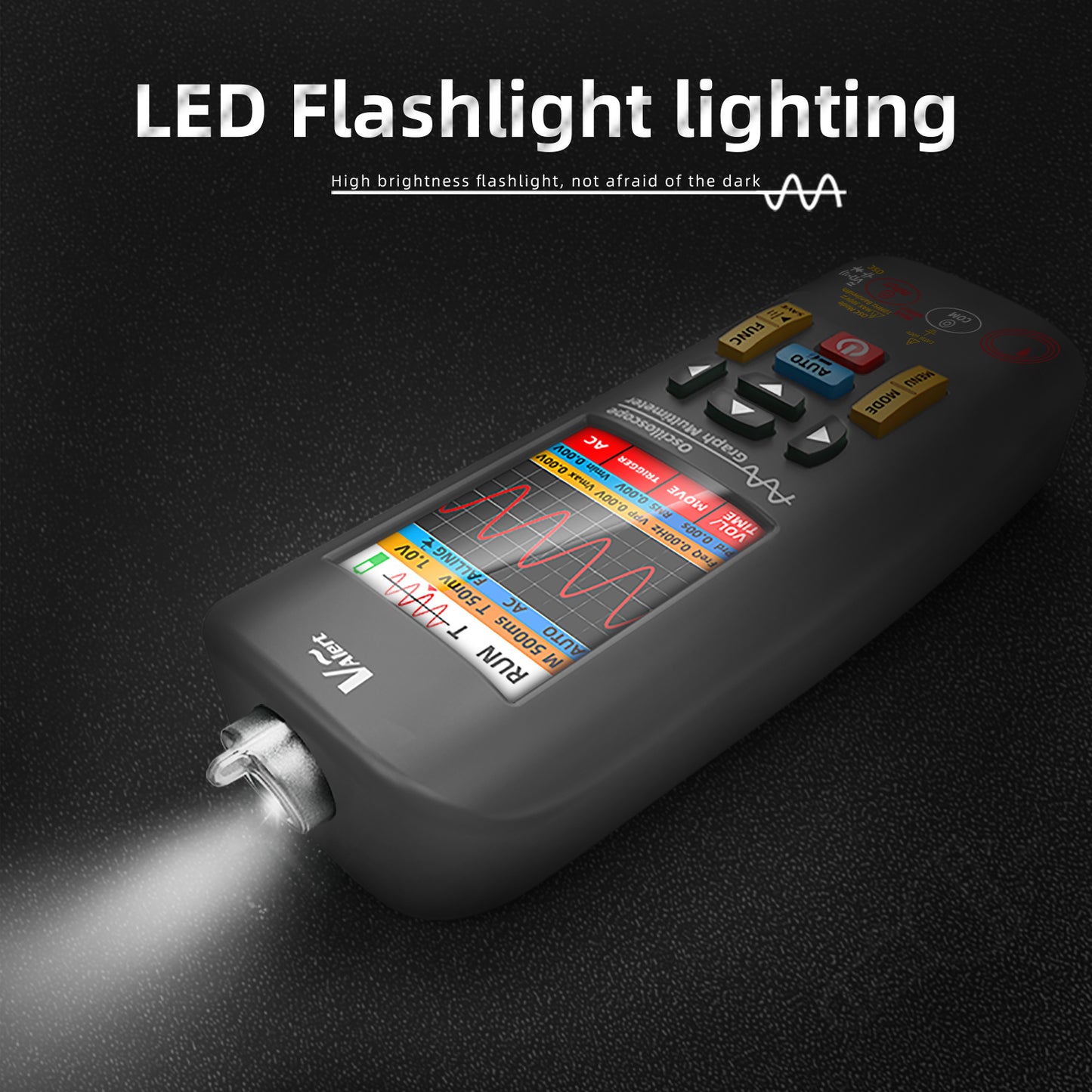

Low battery indication with flashlight design

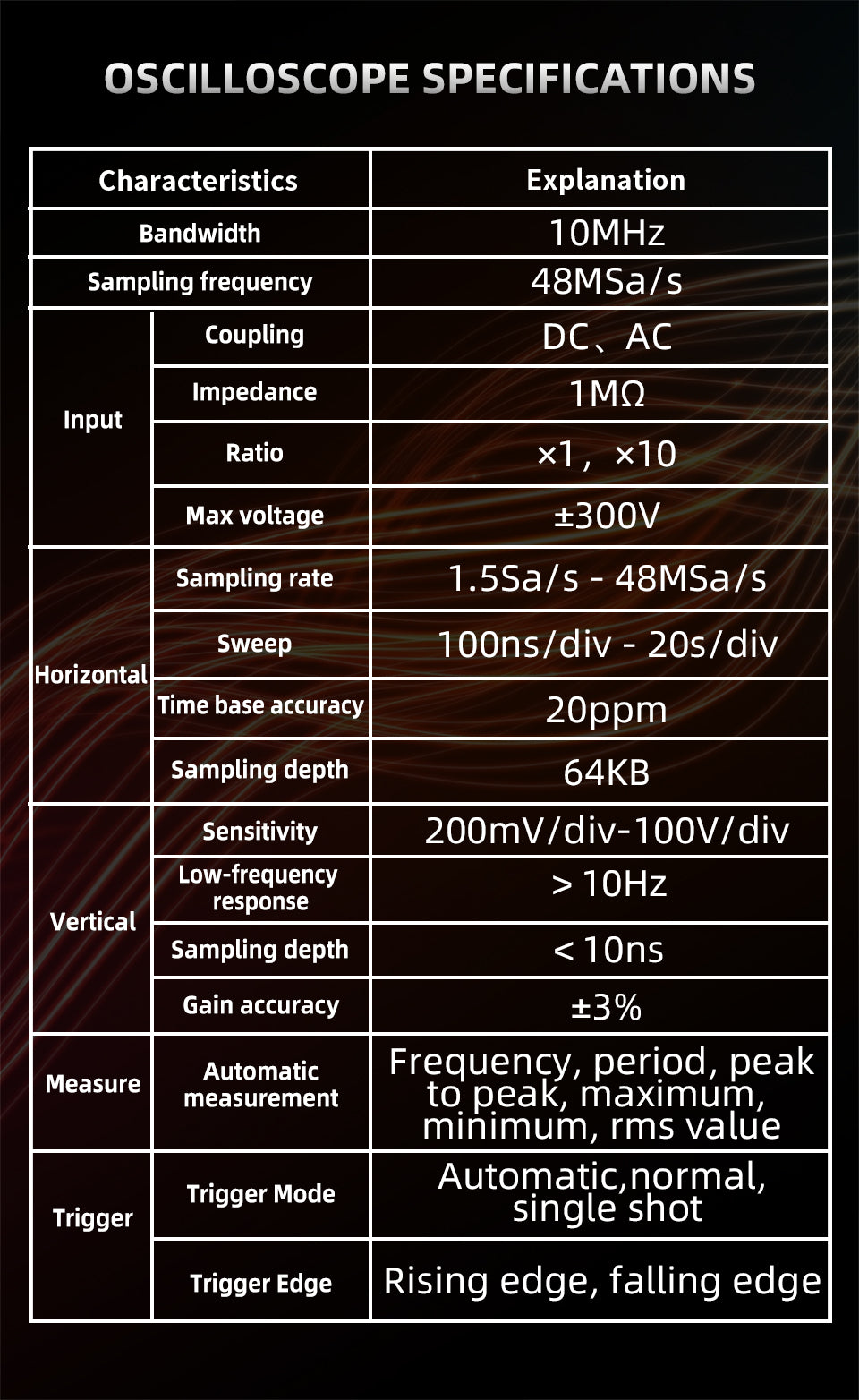

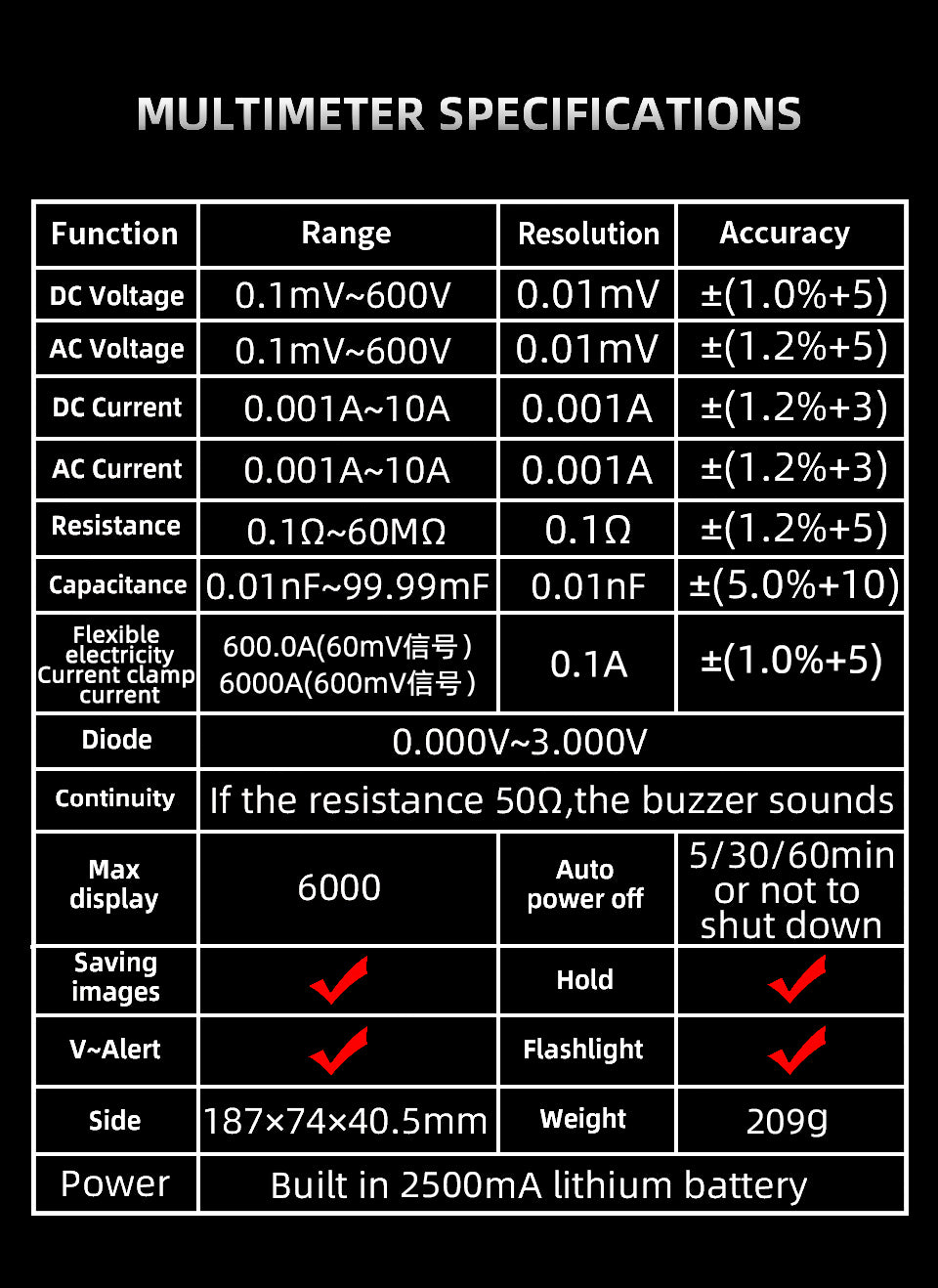

Specifications:
MAX Display: 6000 counts

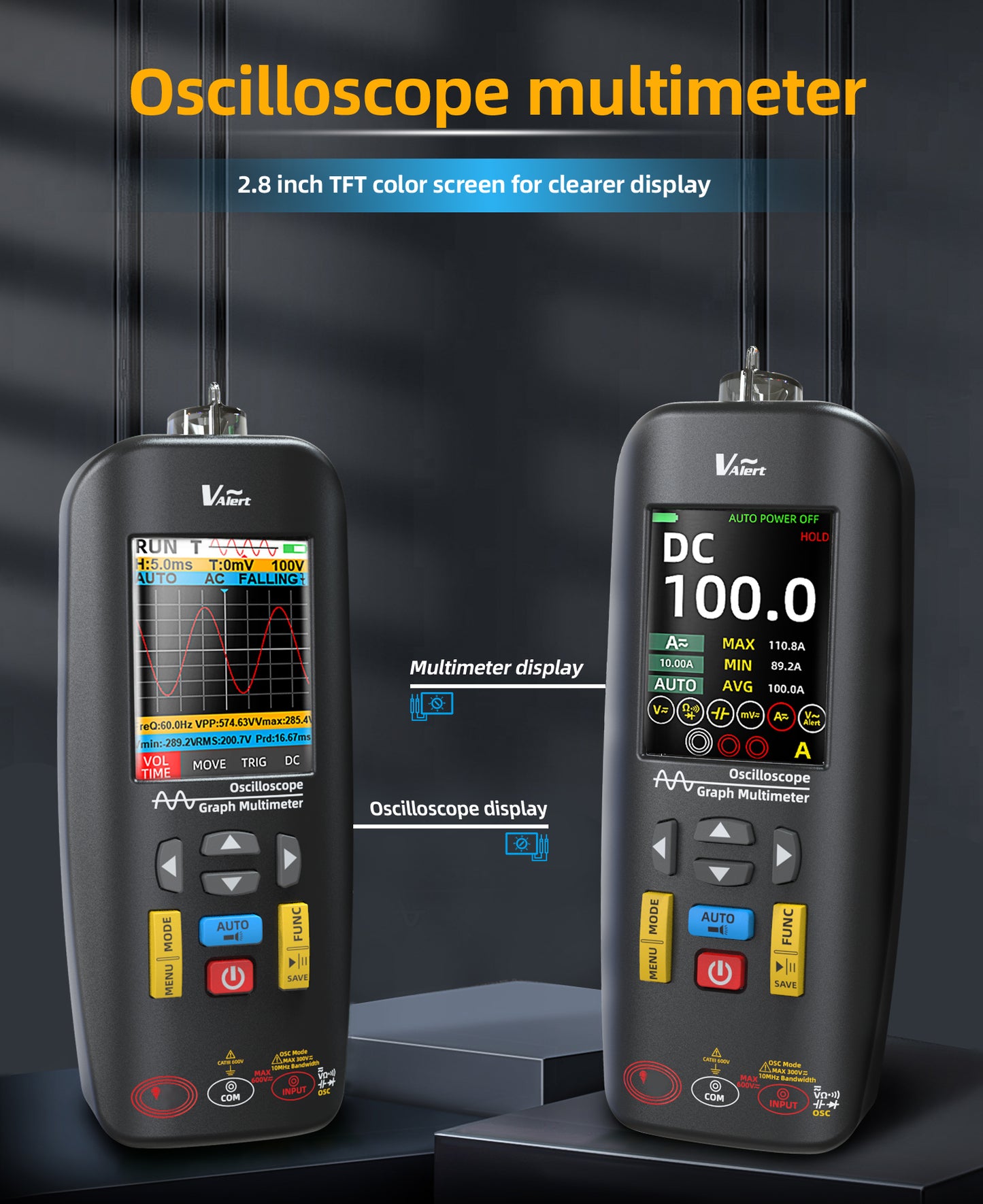

Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 300V (DC+AC peak)
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -100V/div
DC voltage:
60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V 0.1V ±(1%+5)
AC voltage:
60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5)
AC current: 1-6000A  ±(2.5%+3)
Resistance:
600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3);
6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5)
Capacitance: 99.99nF 0.01nF ±(5.0%+20);
999.9nF/9.999µF/99.99µF/999.9µF 0.1nF/0.001µF/0.01µF/0.1µF ±(4.5%+5);
9.999mF/99.99mF 0.001mF/0.01mF ±(5.0%+10)
Diode: Measures diodes within 3V
Continuity: Yes
V-Alert(non-contact voltage detection): Yes
Power: 2000mA battery (rechargeable)
Size: 187 x 74 x 40.5 mm
Weight: 269g

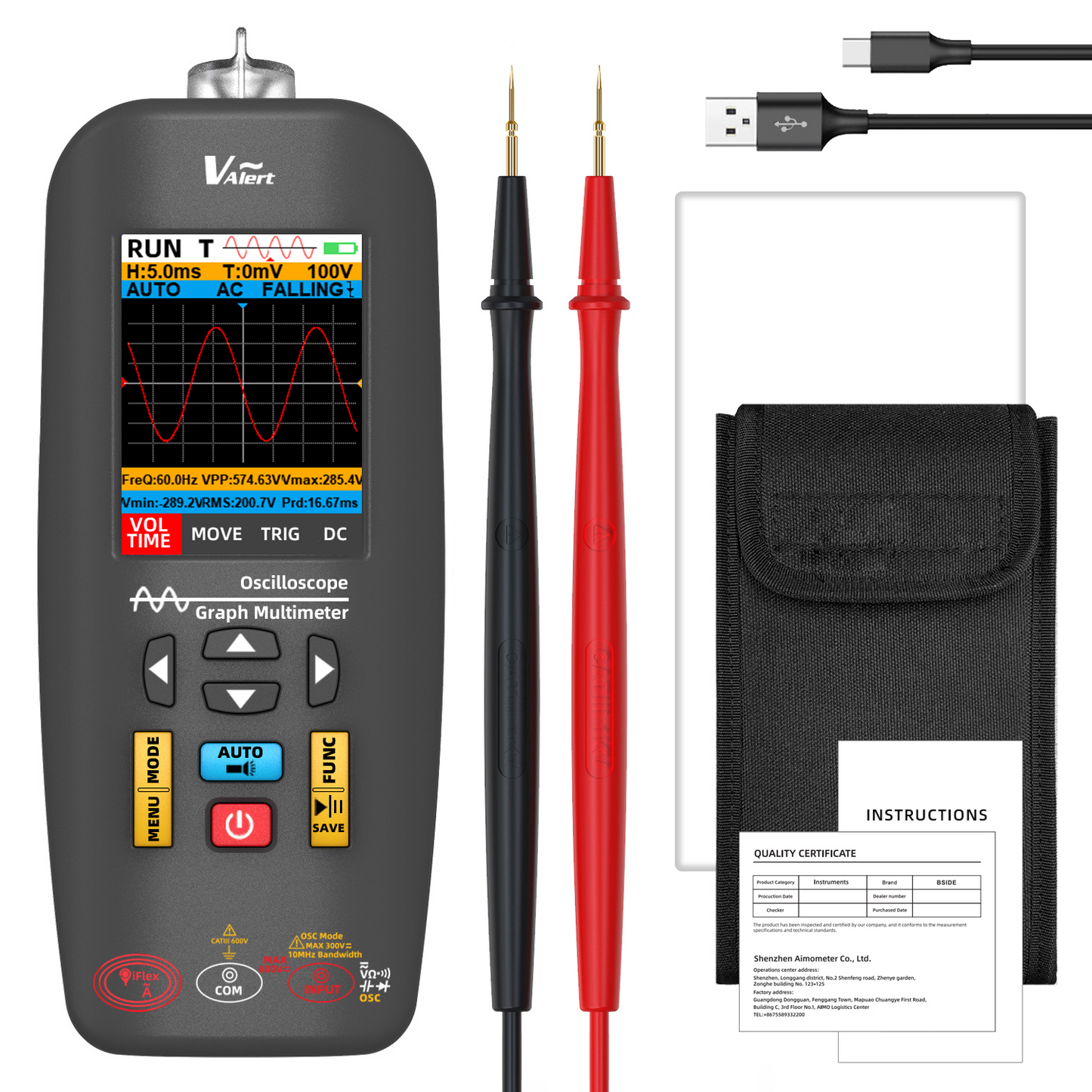

Package Includes:
1 x Handheld Oscilloscope Multimeter
1 x Test Leads
1 x Carrying Case
1 x Charging Cable
1 x User Manual
