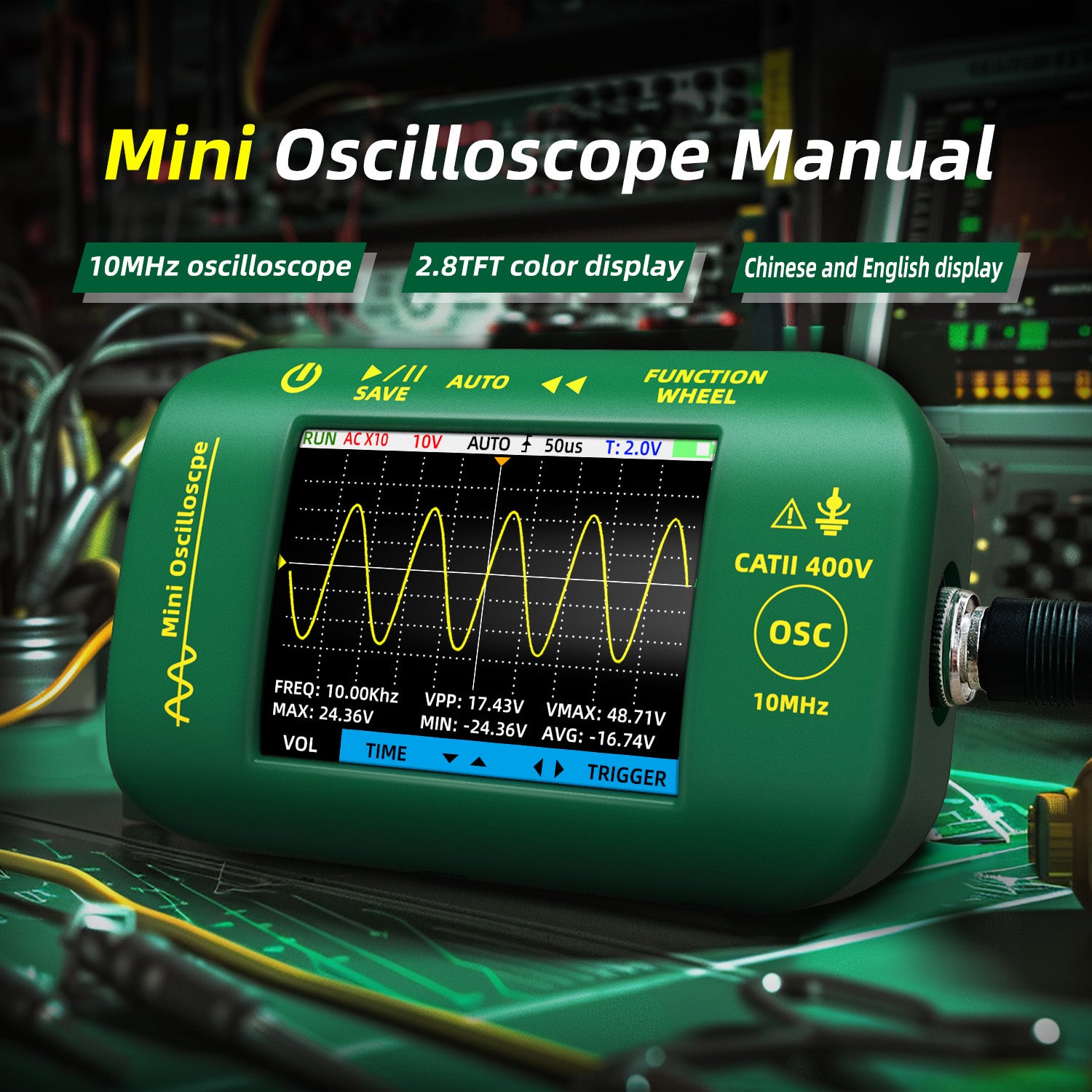

BSIDE OT2 Handheld Digital AUTO Oscilloscope 10Mhz Sampling Rate 1.5KSa/S Analog Bandwidth for Electronic Repair Tools

BSIDE OT2 Handheld Digital AUTO Oscilloscope 10Mhz Sampling Rate 1.5KSa/S Analog Bandwidth for Electronic Repair Tools

Regular price $39.90
Regular price $59.90 Sale price $39.90
Sale Sold out
Description:

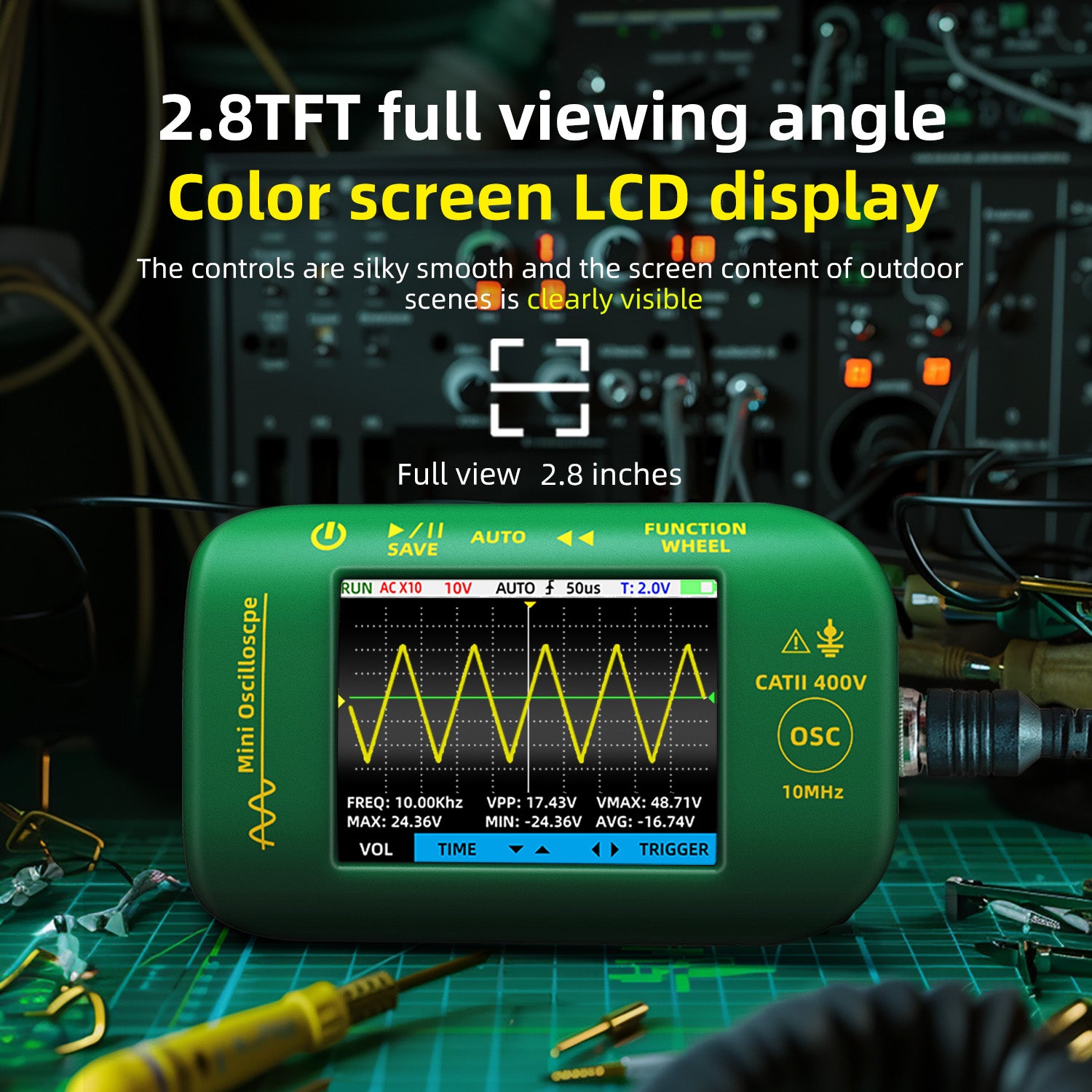

1.TFT2.8 inch full-view screen

2.128K storage depth,

3.48M sampling rate, analog bandwidth 10MHz

4. With complete trigger function (single trigger, normal trigger, automatic trigger), whether it is a periodic analog signal or a non-periodic digital signal can be freely used

5. Maximum detectable voltage signal ±400V

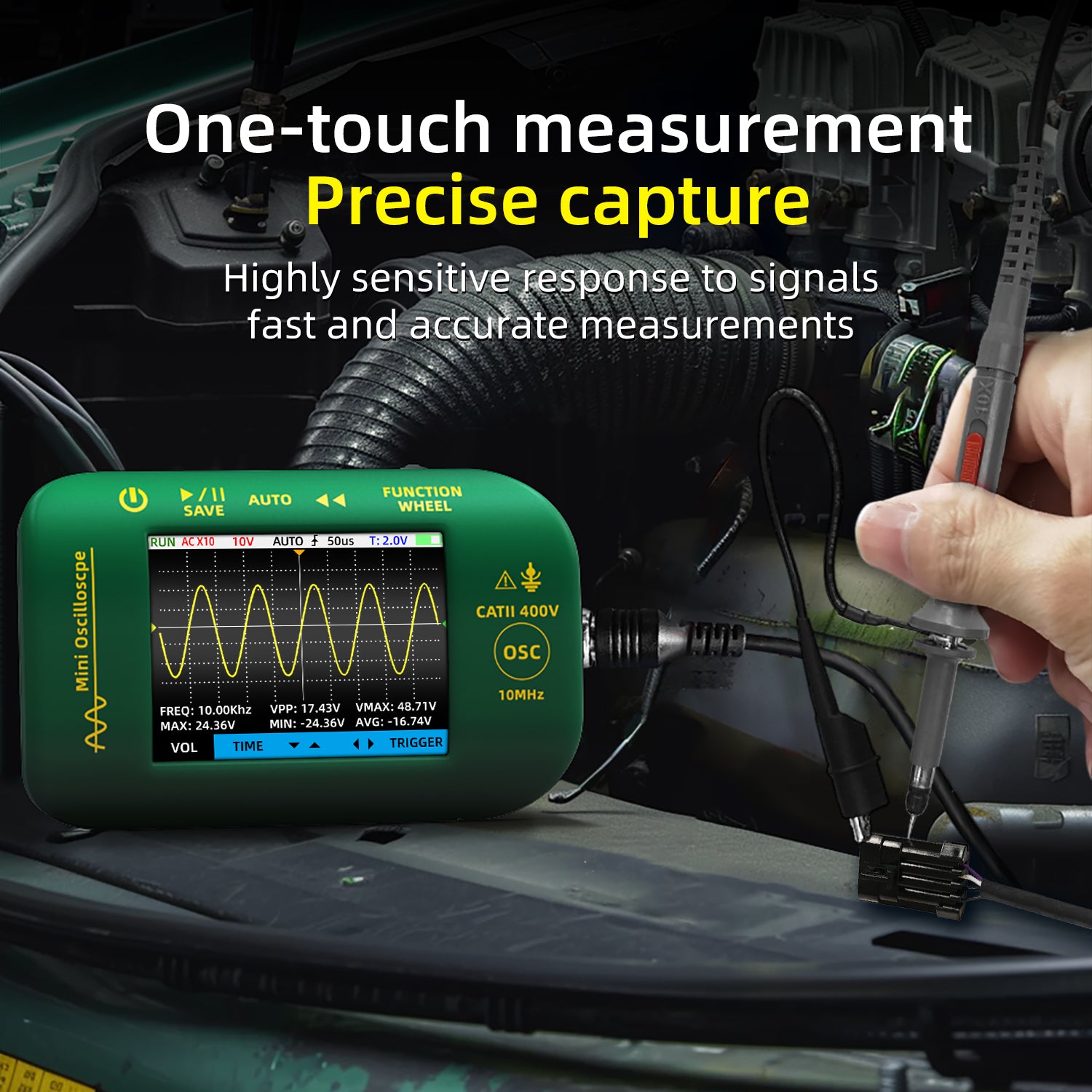

6. Equipped with efficient one-click automatic display function, the measurement waveform can be displayed without complicated adjustment



Product parameter


Model :BSIDE OT2

Sampling rate :48M

Number of channels :1

Analog bandwidth :10MHz

Measurement voltage :X1/+40V X10/ Earth 400V

Input impedance :1MQ


Display :2.8 "TFT

Resolution :320 * 240

Charging voltage :5V

Battery capacity :1800mAh

Continuous working time :4.5-6h

Firmware upgrade: Supported

Appearance: Contains silicone sheath

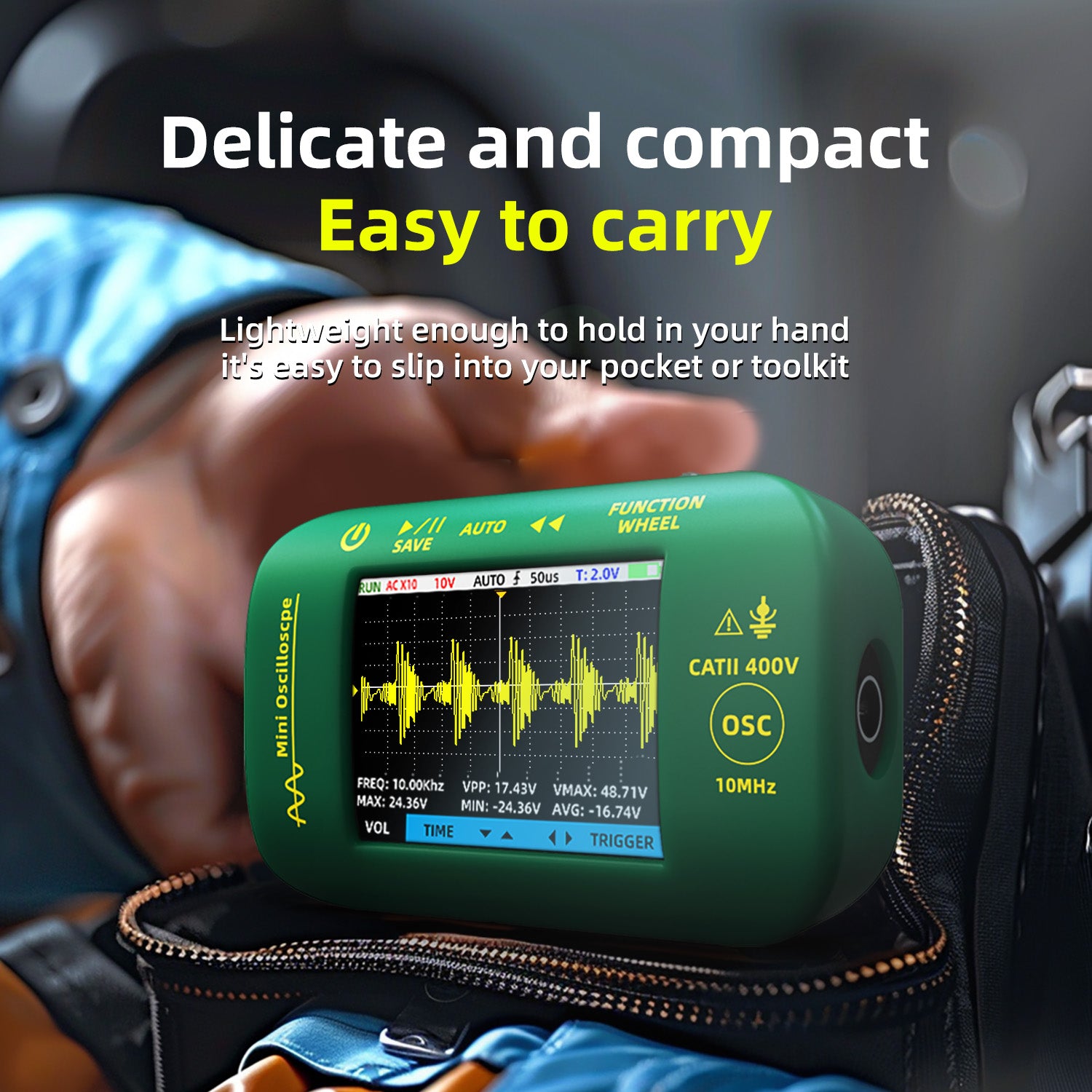

Shell size: length 108mm* Width 69.5mm* thickness 33mm


preventive measure


1, the use of crocodile clamp measurement can not exceed 40V, crocodile clamp prohibited to measure the utility, when measuring more than 40V voltage, be sure to use the oscilloscope probe, attenuation ratio position switch to X10.

2. When measuring high voltage (AC voltage greater than 36V), do not touch the metal part of the instrument
