BSIDE Smart Digital Multimeter Professional Automatic VFC Infrared Temp Electrical Tester Tools

BSIDE Smart Digital Multimeter Professional Automatic VFC Infrared Temp Electrical Tester Tools

Regular price $35.31
Regular price $47.17 Sale price $35.31
Sale Sold out

BSIDE A50 Smart Digital Multimeter Professional Automatic Multitester VFC Hz Capacitor Electric Test Tool Ammeter Electrician Tester
Product introduction:
This product belongs to the latest generation of Smart Digital Multimeter of BSIDE brand!

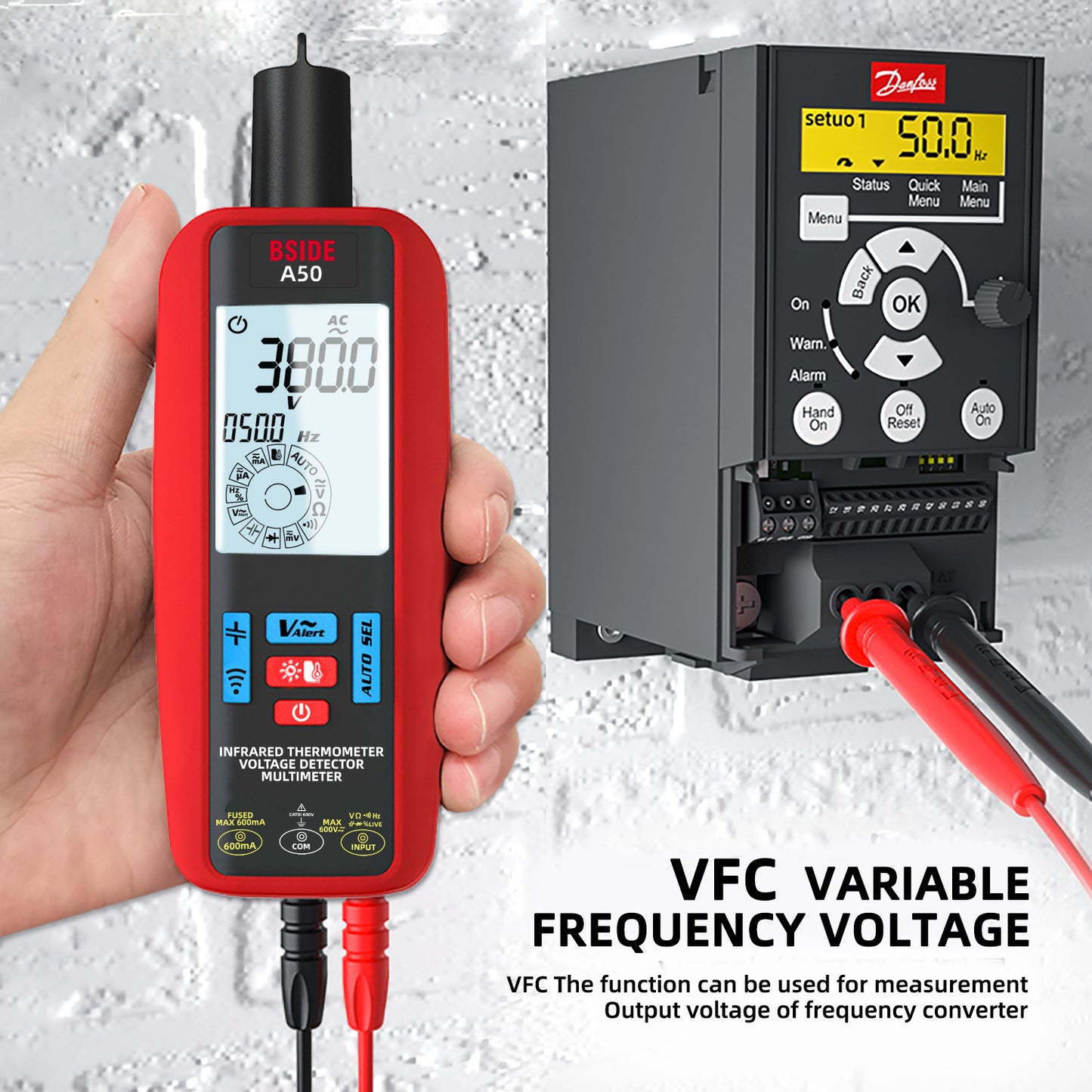

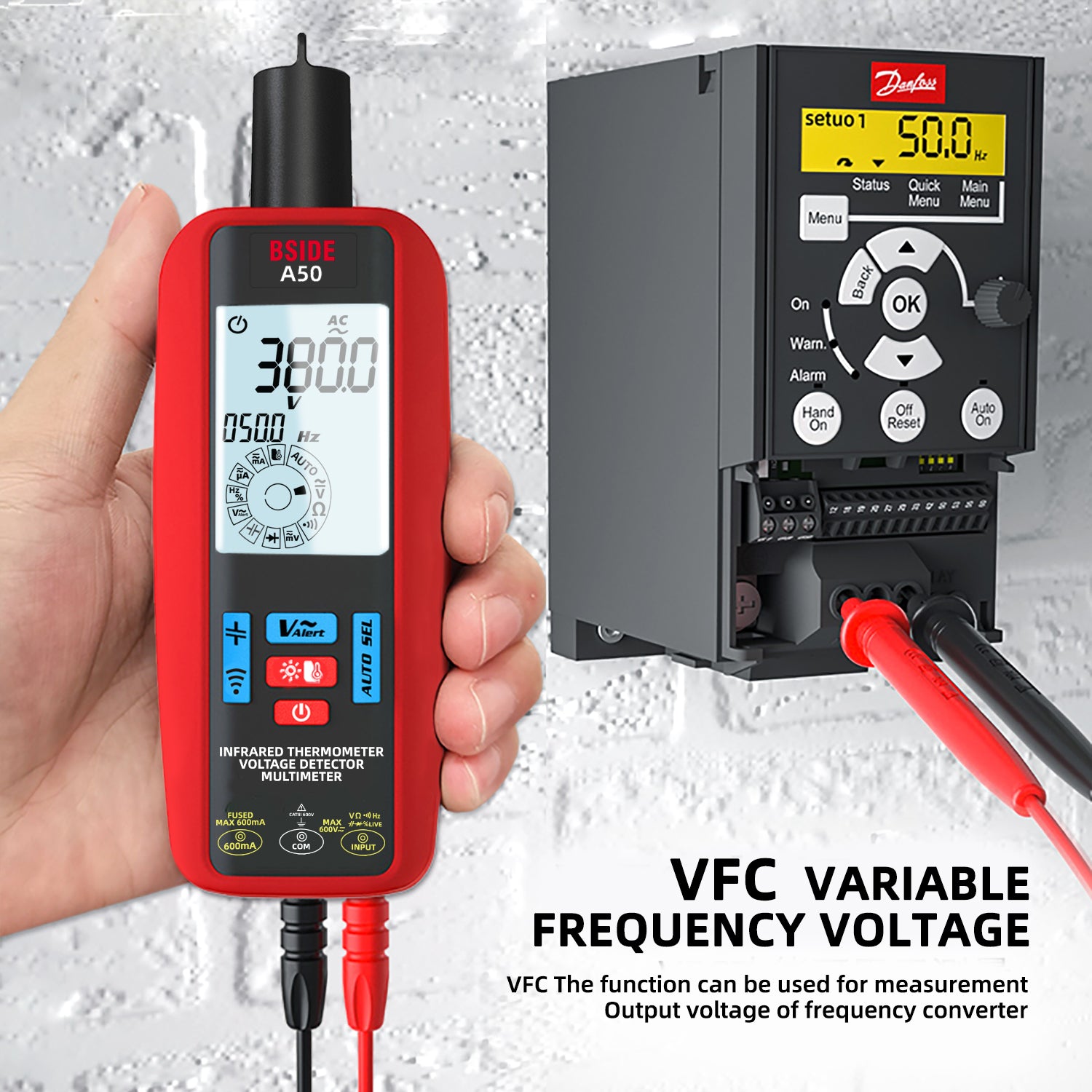

The A50 product has VFC variable frequency voltage, current, and temperature testing. The application scenarios are more extensive.
Overload protection, easy-to-use design is well received by buyers.
Exquisite appearance/reliable performance/complete functions, can meet the needs of different people, and is very suitable as a gift.
Equipped with a high-quality cloth bag made of EVA material, it is very portable.
Features:

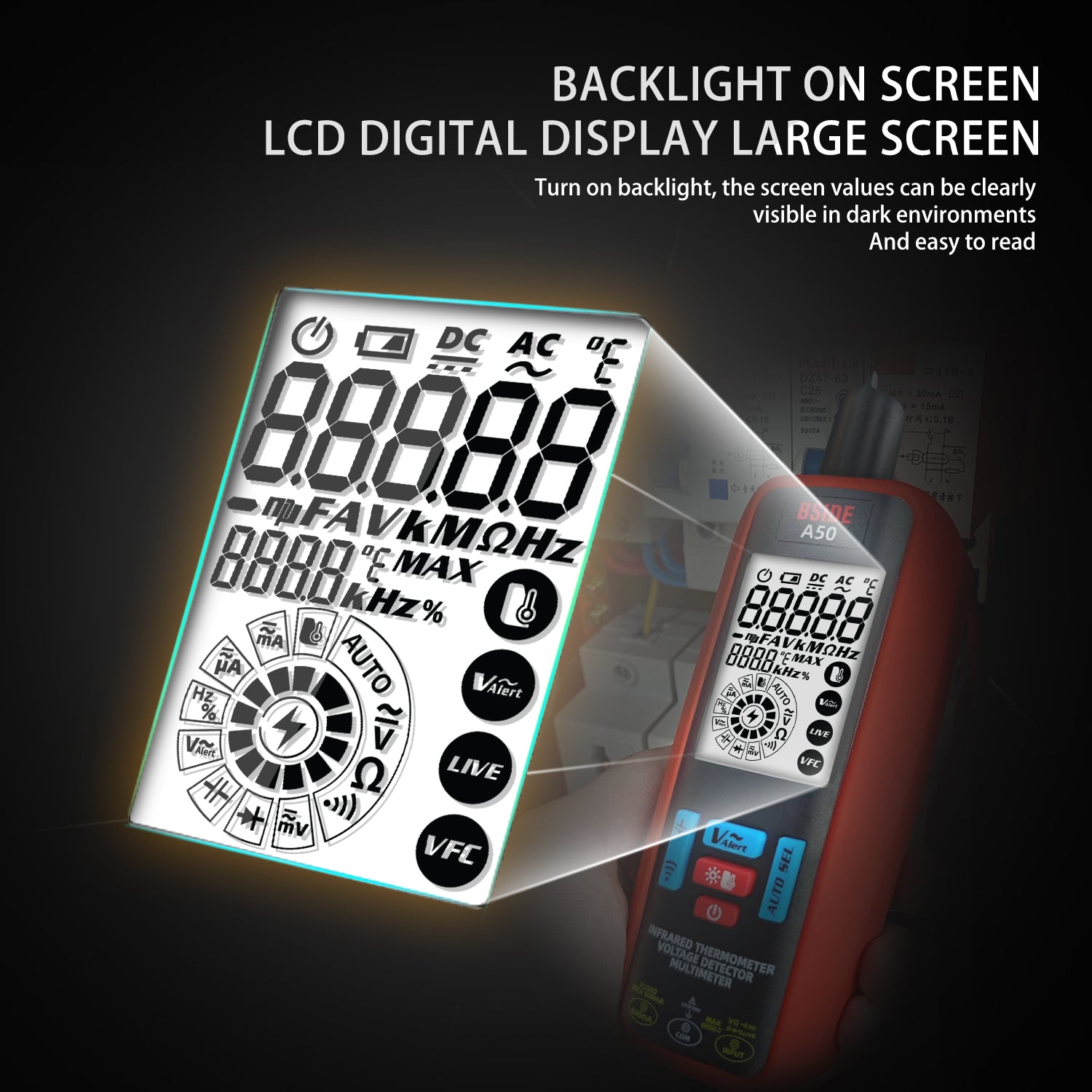

Large LCD display
​Automatic and manual modes
​Triple mode alarms
​Capacitance, diode, VFC and temperature testing
​Charge Check, Continuity and Vert Tests
​AC/DC voltage and current, resistance, frequency testing
​Auto-ranging, auto power-off, data hold, low battery indication

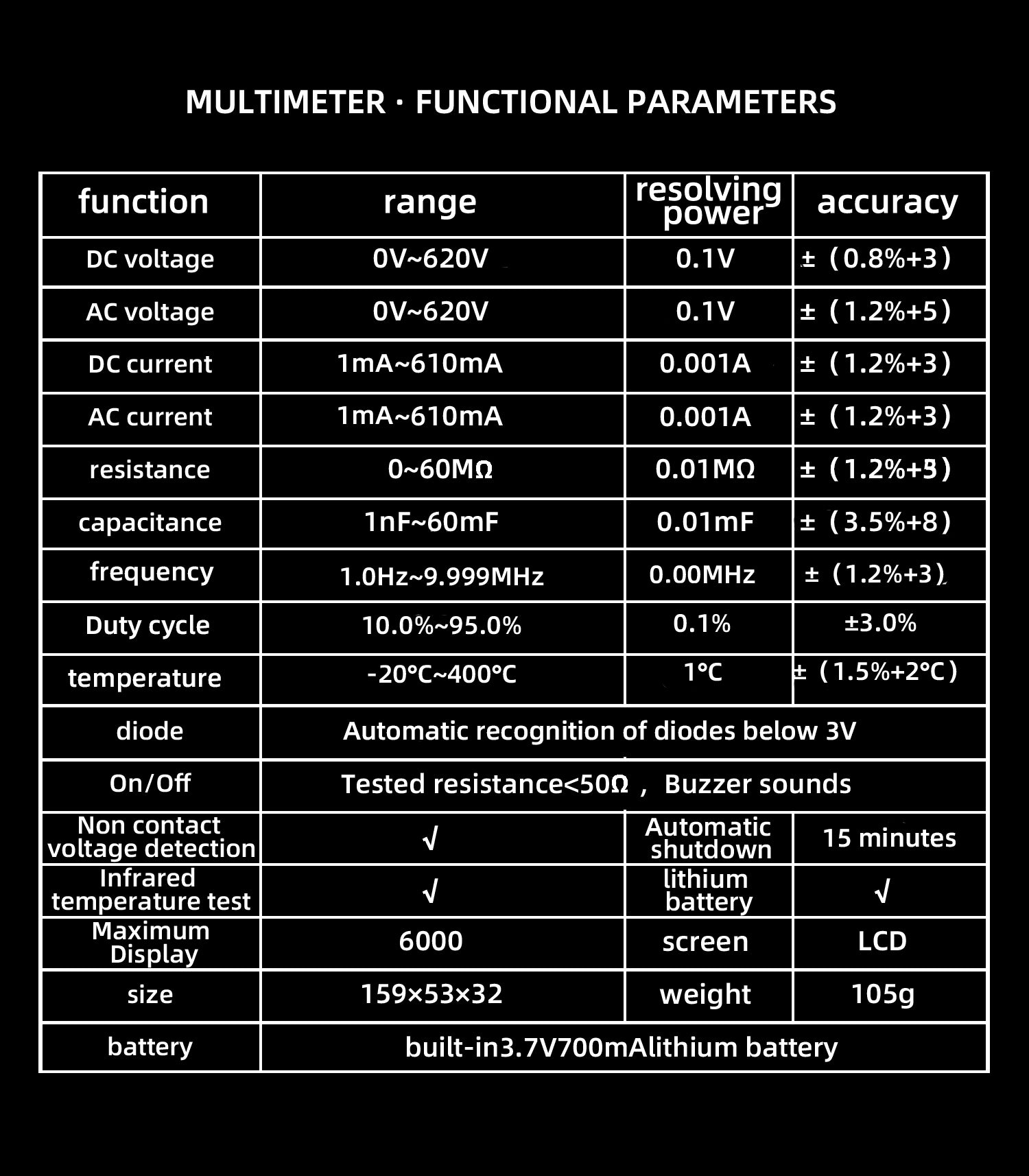

Specifications:
Display: 6000 counts.
True RMS: Yes.
Screen: 2.2 inches
DC voltage: 0-6.099V 0.001V ±(0.8%+3)/6.10V~60.99V 0.01±(0.8%+3)/61.0V~620V 0.1V±(1%+5)
AC Voltage:

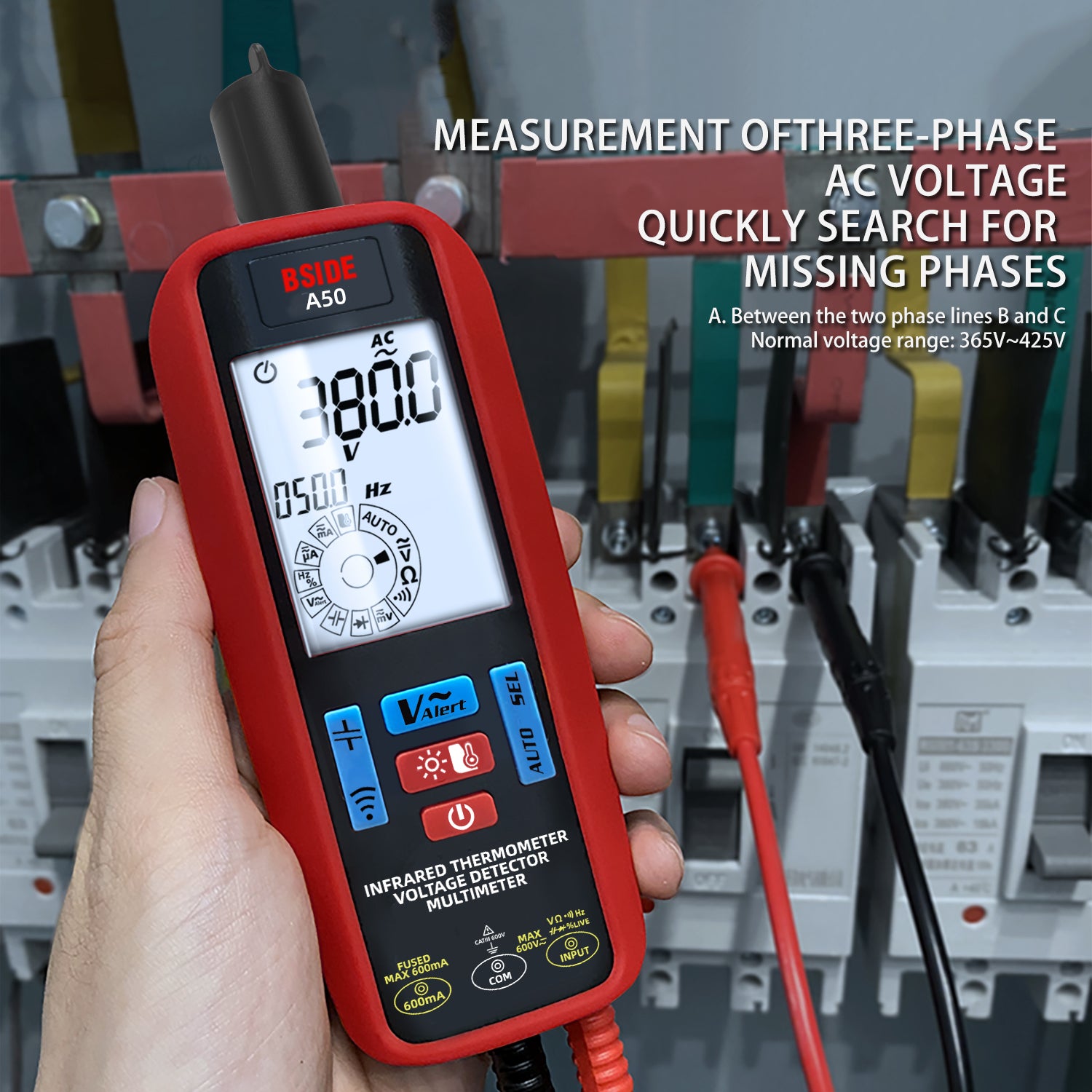

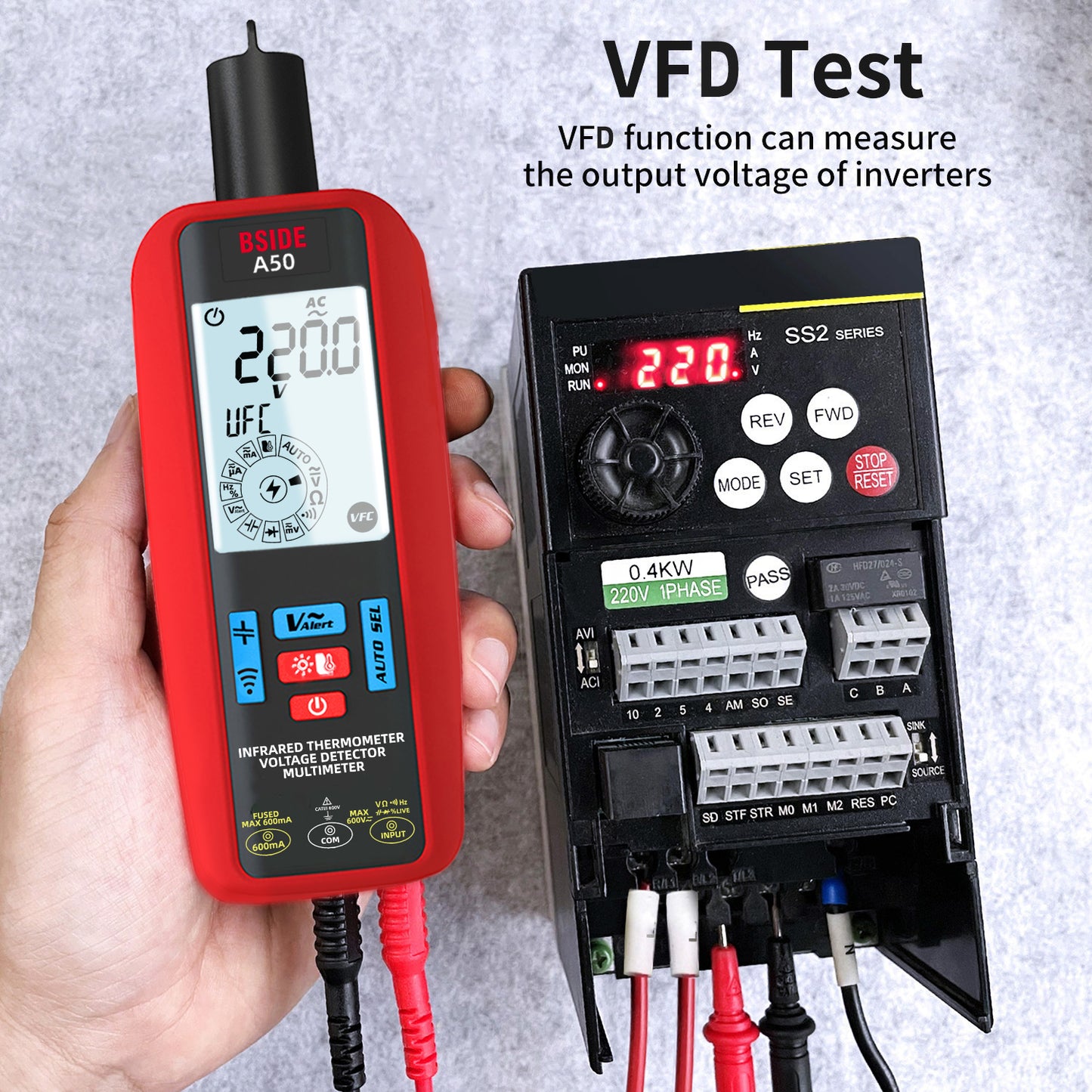

0-6.099V  0.001V ±(1.2%+5) /6.10V~60.99V 0.01V ±(1.2%+5); 61.0V-620V (VFC mode) 1V (4.0%+3)

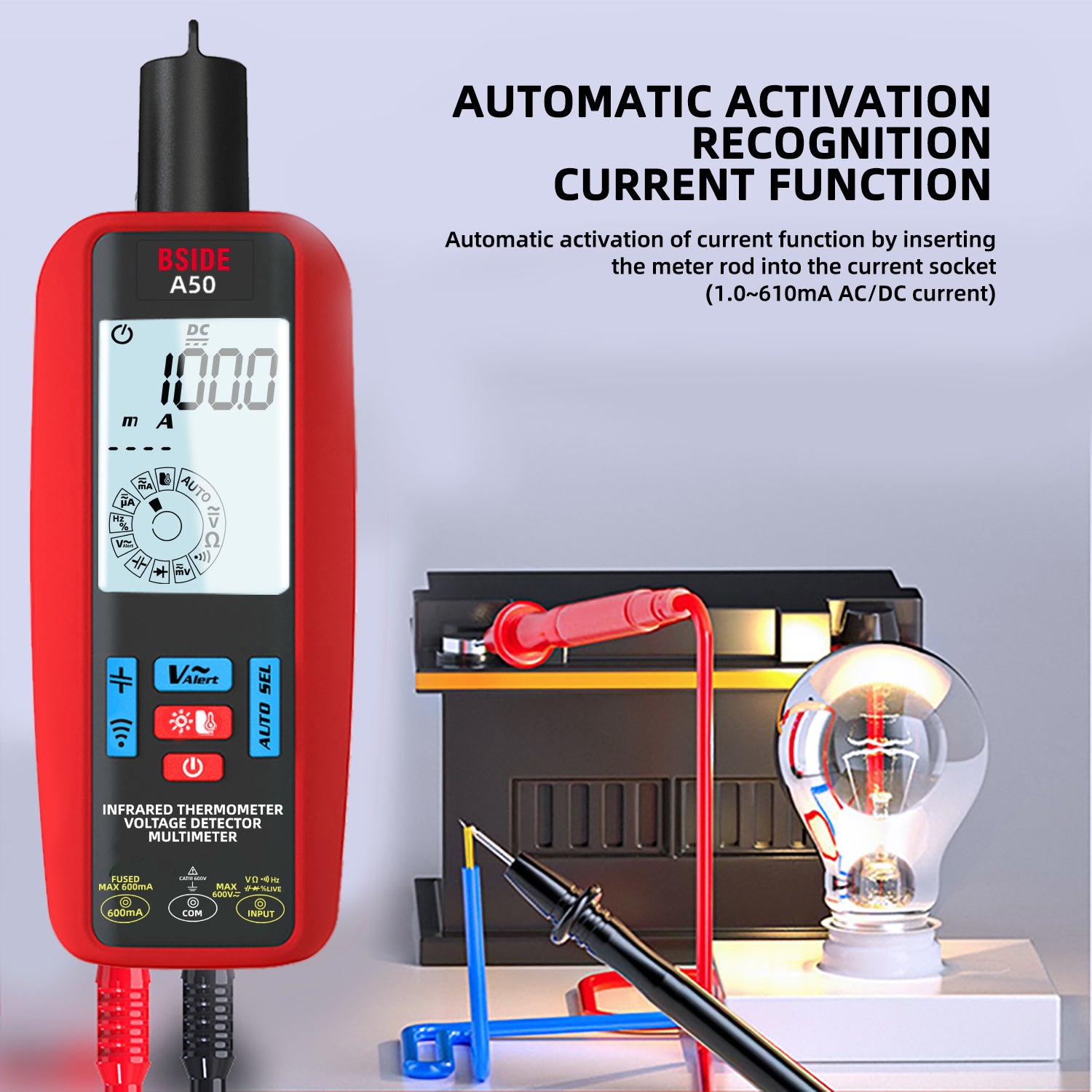

DC Current: 1.0-610mA 0.1mA ±(1.5%+3)
AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3)
Resistance: 0Ω-609.9Ω 0.1Ω ±(1.2%+3); 0.610KΩ-6.099KΩ 0.001Ω ±(1.2%+3); 6.10KΩ~60.99KΩ 0.01KΩ ±(1.2%+3); 61.0KΩ~609.9KΩ  0.1KΩ ±(1.2%+3); 0.610MΩ~6.099MΩ 0.001MΩ ±(1.2%+3); 6.10MΩ~60.00MΩ 0.1MΩ ±(2.0%+10)
Capacitance: 1nF-6.099nF 0.001μF ± (3.5%+8); 6.10nF-60.99nF 0.01nF ±(3.5%+8);61.0nF~609.9nF 0.1nF ±(3.5%+8); 0.610uF~6.099uF 0.001uF ±(3.5%+8); 6.10uF~60.99uF  0.01uF ±(3.5%+8);61.0uF~609.9uF 0.1uF±(3.5%+8);0.610mF~6.099mF 0.001mF ±(3.5%+8);6.10mF~60.00mF 0.01mF 0.01 mF ±(3.5%+8)
Frequency: 1-999Hz 0.1Hz ± (1.2%+3); 1.0KHz~999.9KHz 0.1KHz ±(1.5%+5); 1.000MHz 0.001MHz ±(2%+10)

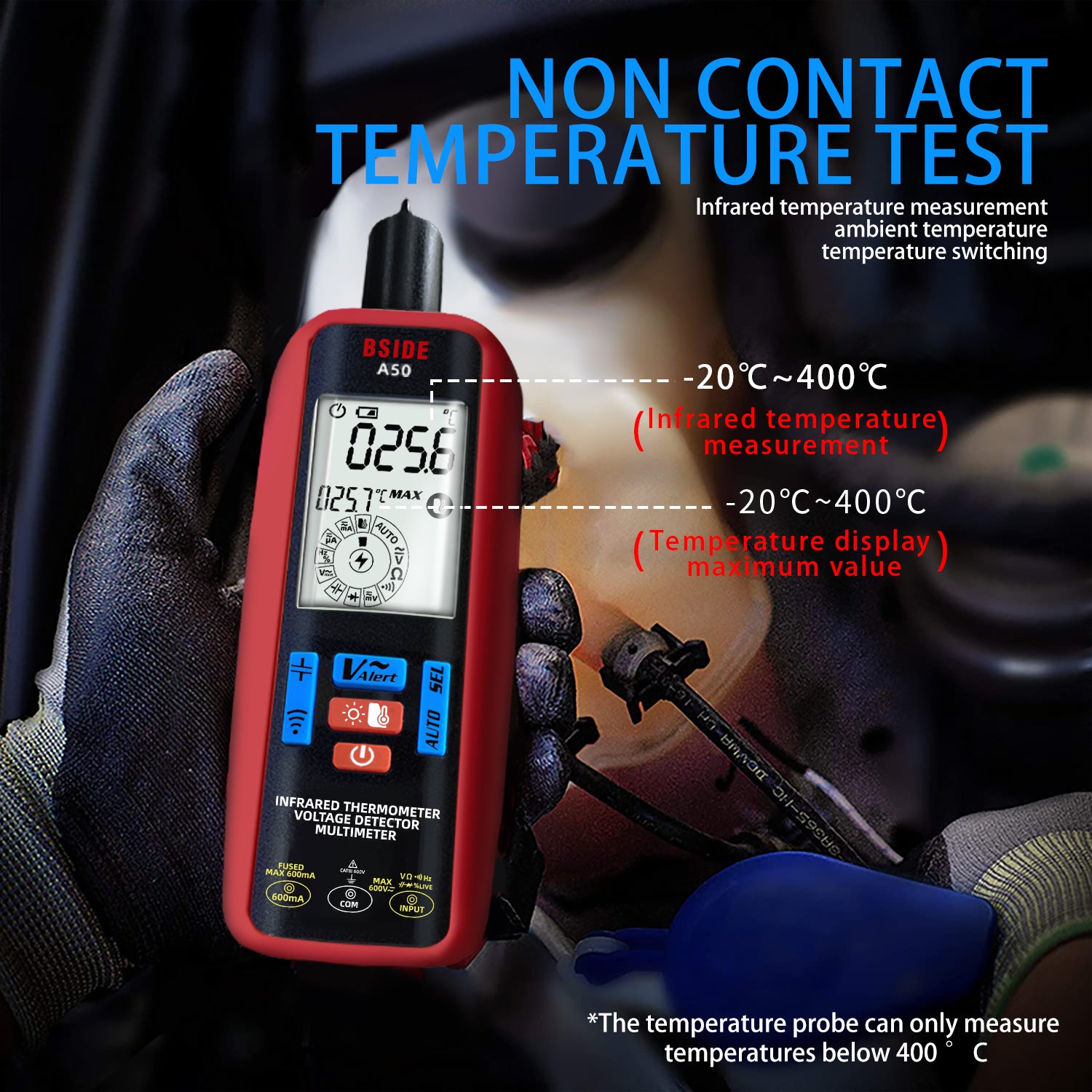

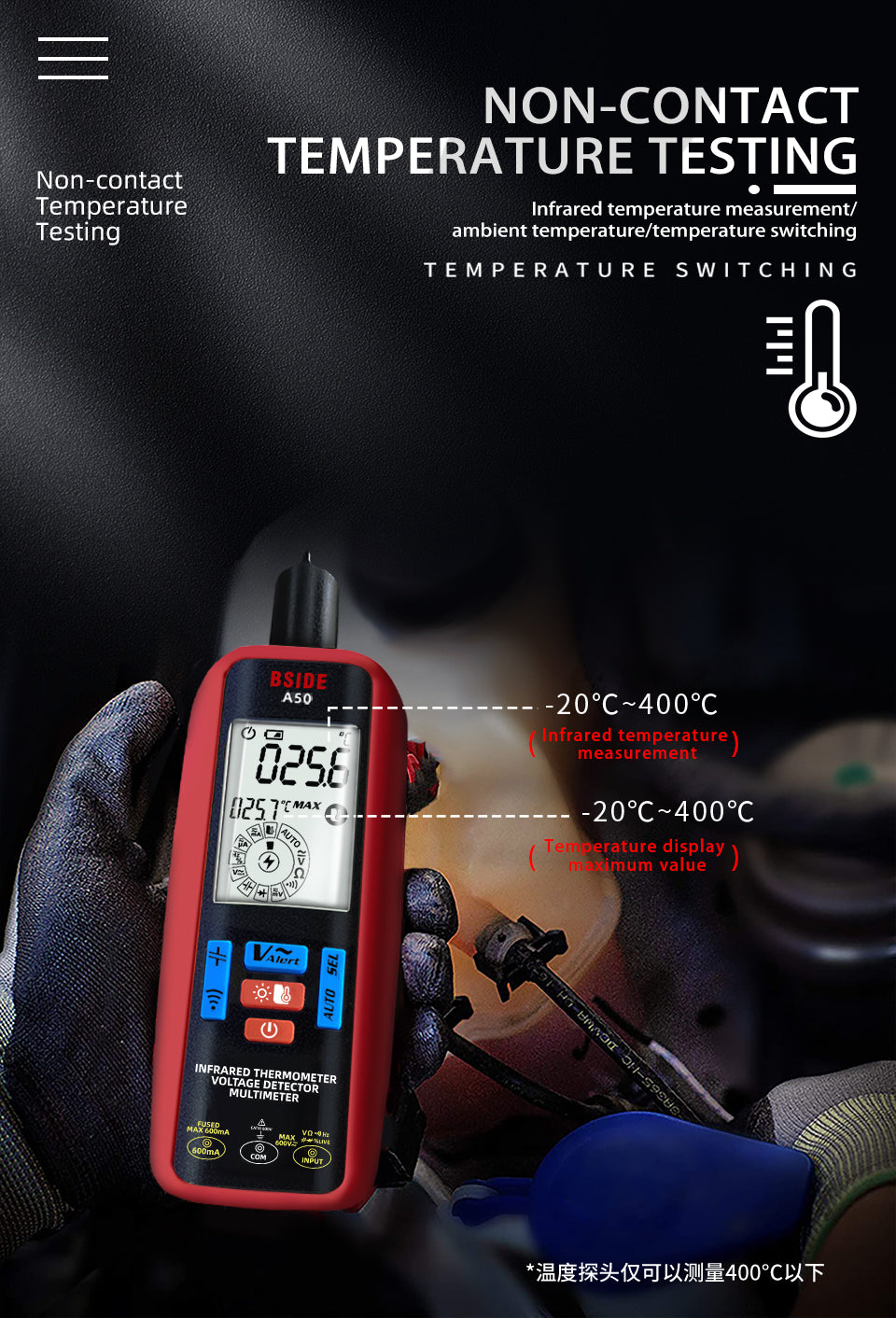

Temperature: -20-50°C 1°C ±(1.5%+2); 50-400°C  1°C ±(2.0%+3)
V-Alert (Non-Contact Voltage Detection): Yes
Diode: Measure a diode in the 3V range
Continuity: If the resistance is less than 50Ω, the buzzer will emit it
Fireline Check: Yes
Ambient temperature: 0-50°C ±2°C
Power supply: 1.5V (AAA) x 2

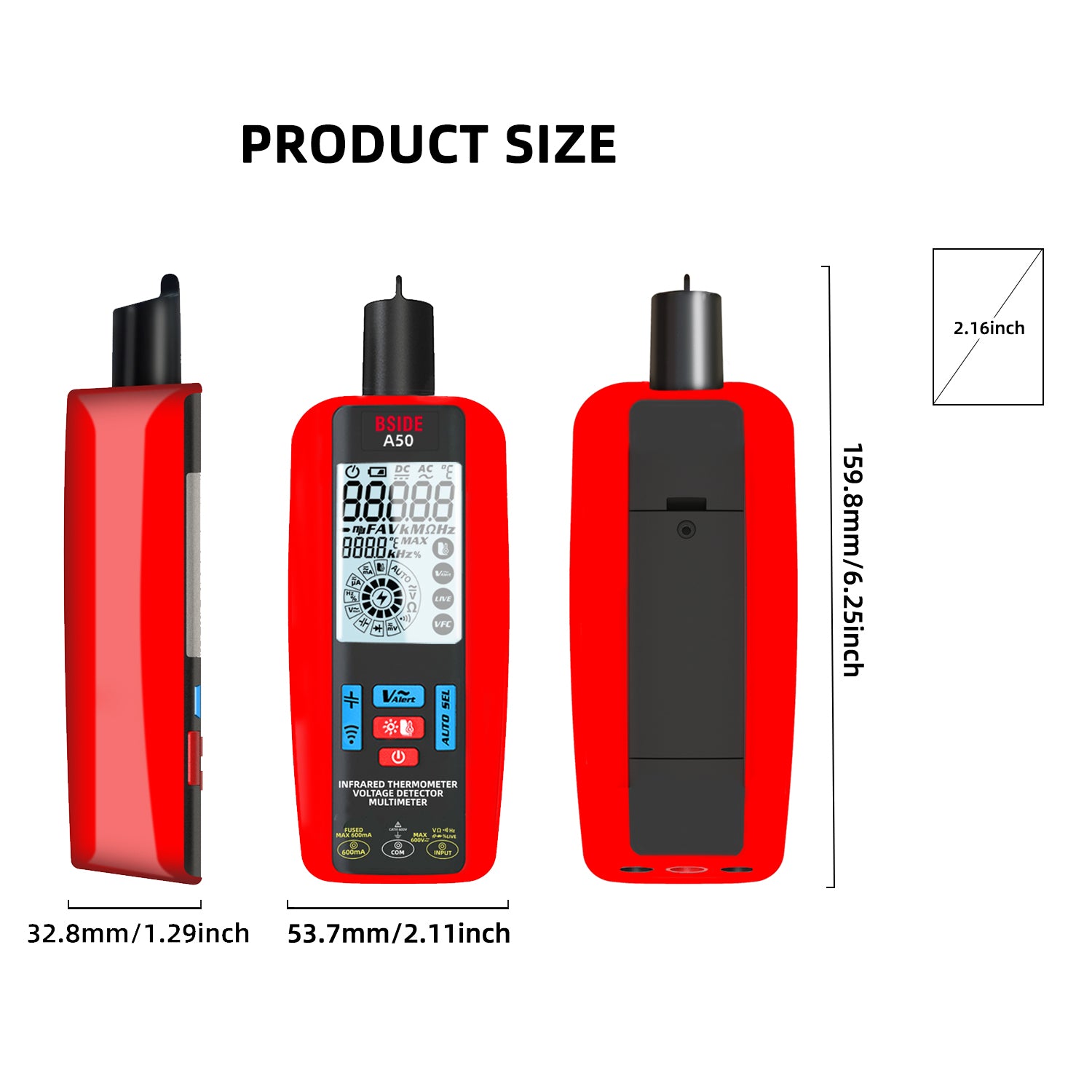

Dimensions: 159.7 x 53.7 x 32.8 mm
Weight: 105g

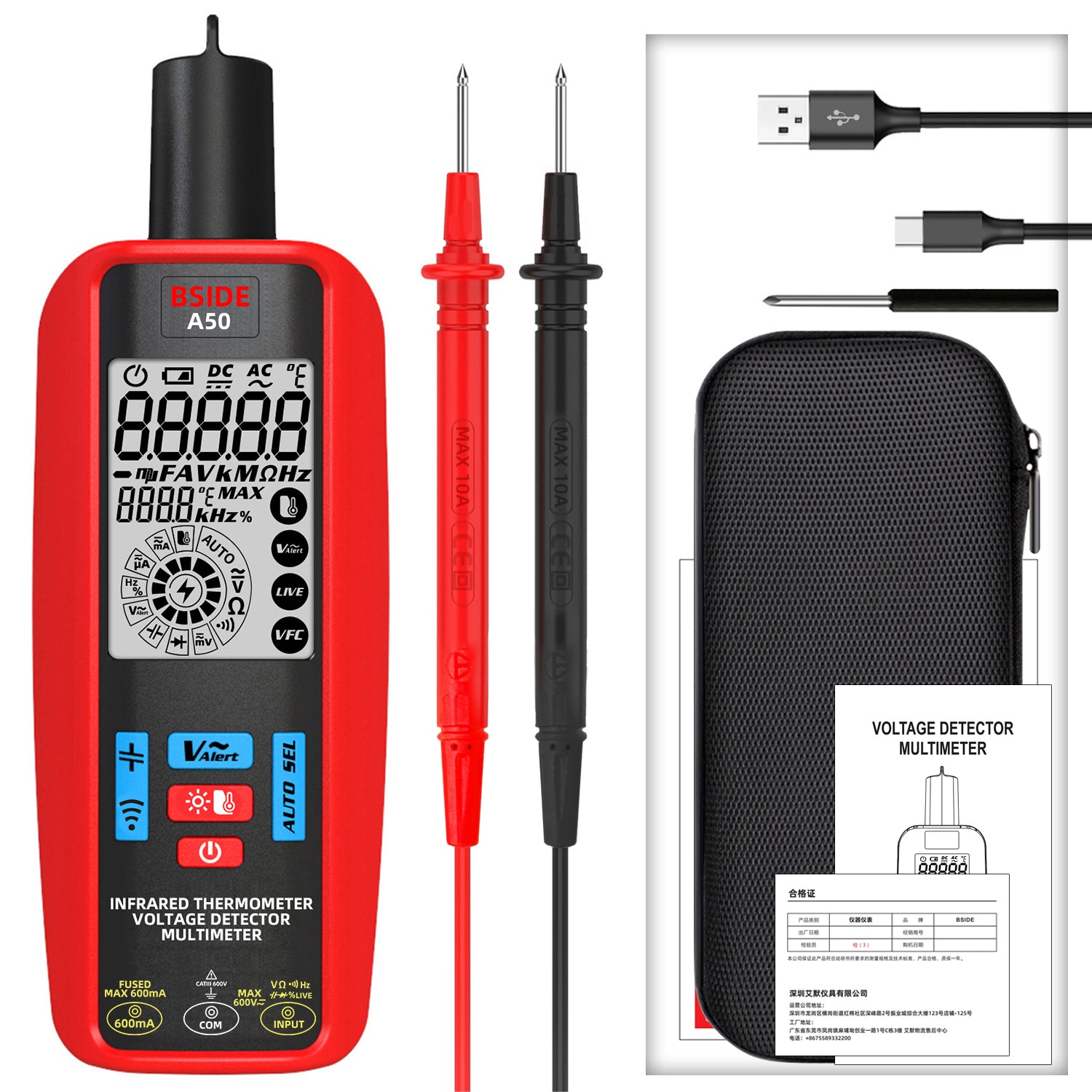

Package Includes:
1 x A50 Voltage Detector Multimeter
.   2 x test leads, 1 x screwdriver
.   1 x User Manual
1 x color box.
1 x C3104 High Quality Crocodile Clip (Tool Kit).
2 x special tip test probes (kit).
1 x High Quality EVA Carrying Case ($2).
