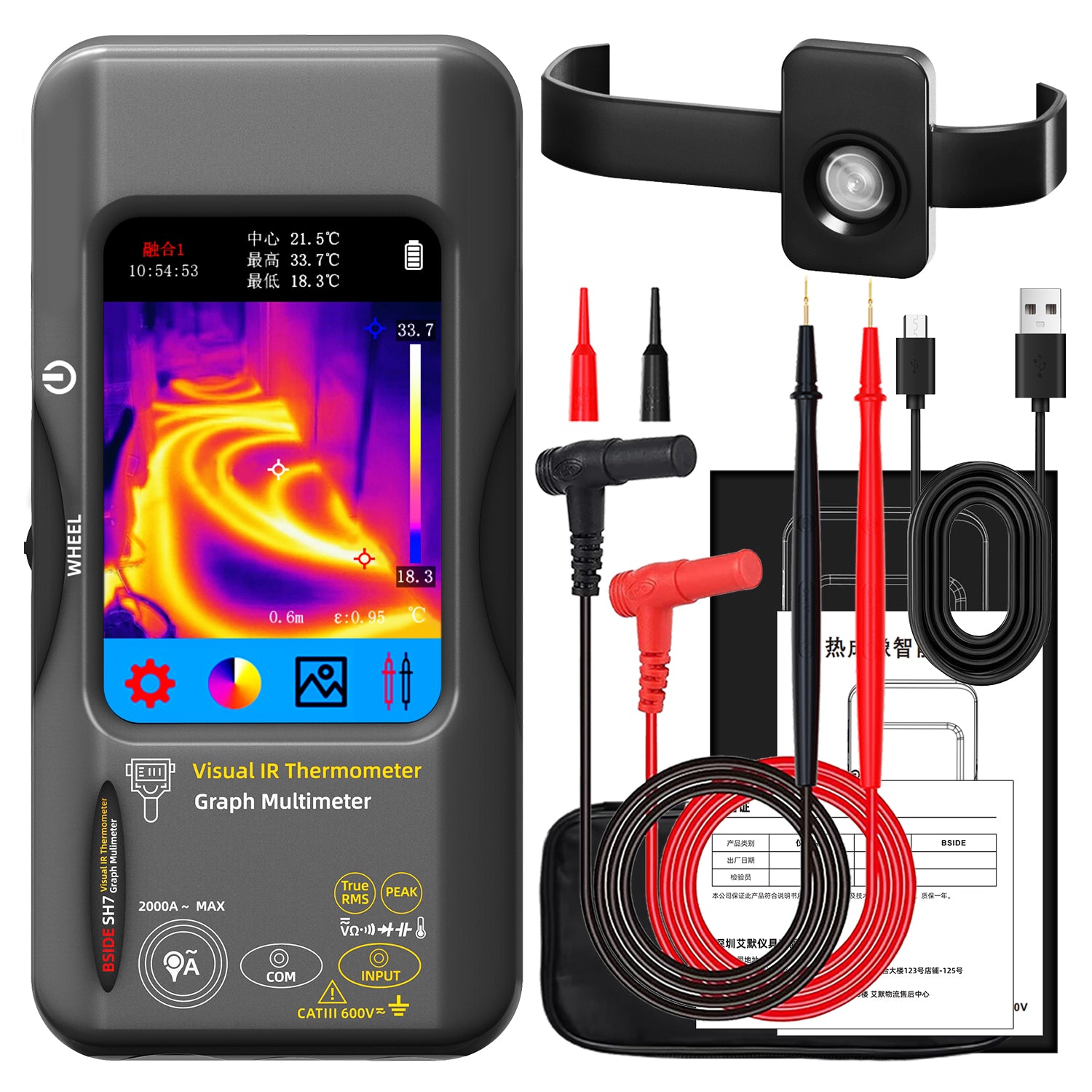

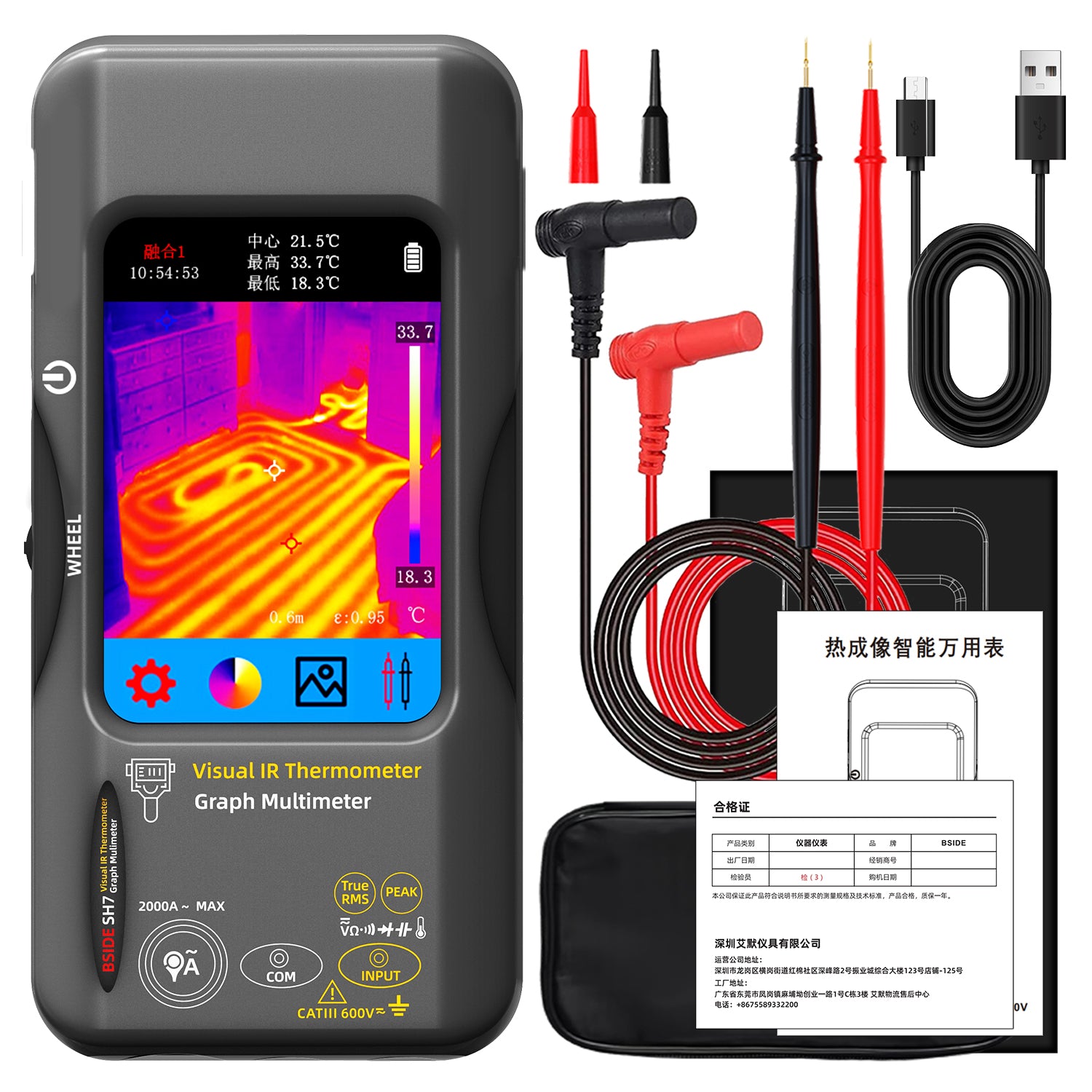

BSDIE Touchscreen thermal imaging multimeter with infrared camera, high resolution, 20,000 counts, high-precision voltage, resistance, and capacitance test professional version

BSDIE Touchscreen thermal imaging multimeter with infrared camera, high resolution, 20,000 counts, high-precision voltage, resistance, and capacitance test professional version

$189.00
$189.00
Sale Sold out
modle
Accessories

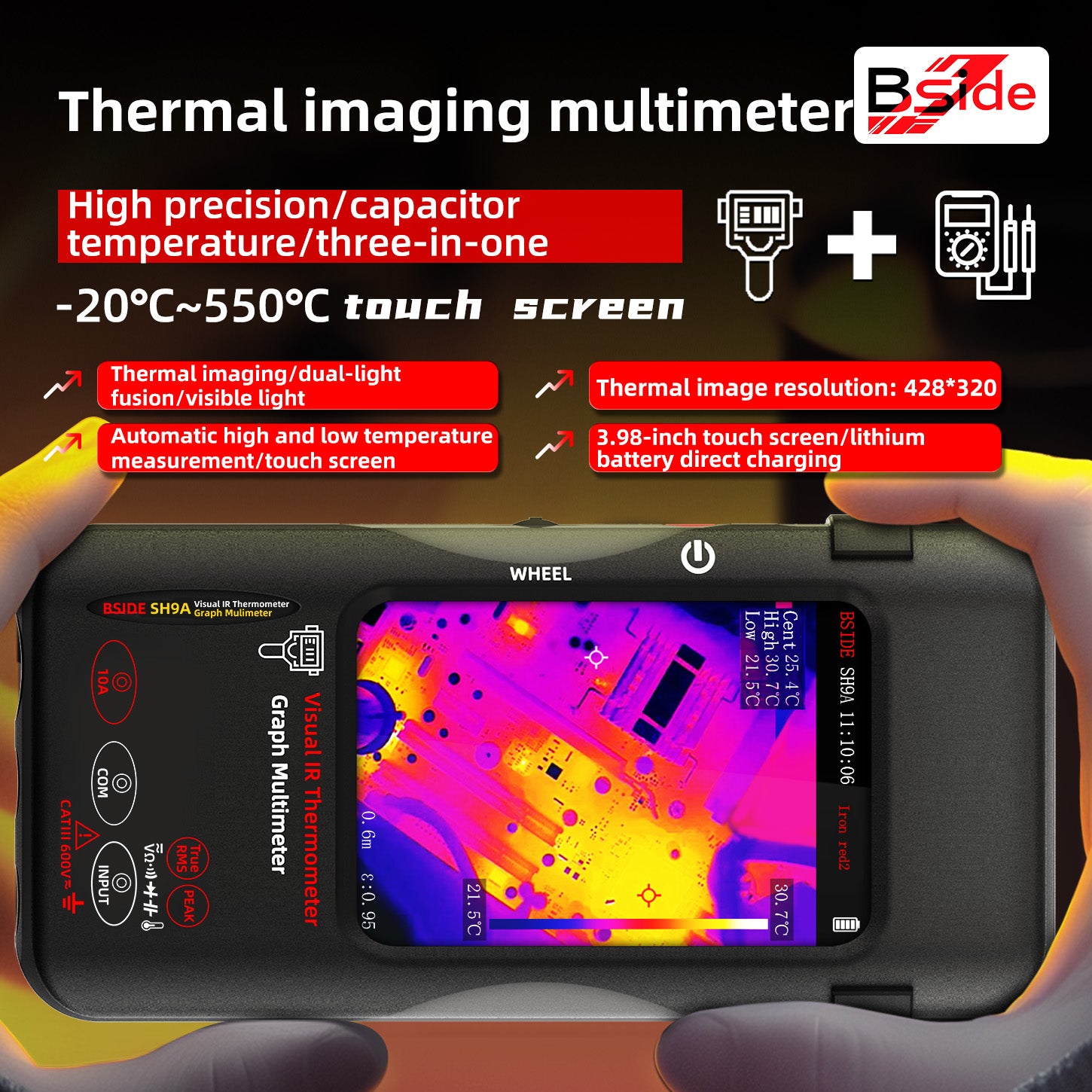

  • [428x320 IR Infrared Camera]: Thermal imaging camera has 428 x 320 ir resolution, which could help you detect potential problems early and diagnose problems reliably.

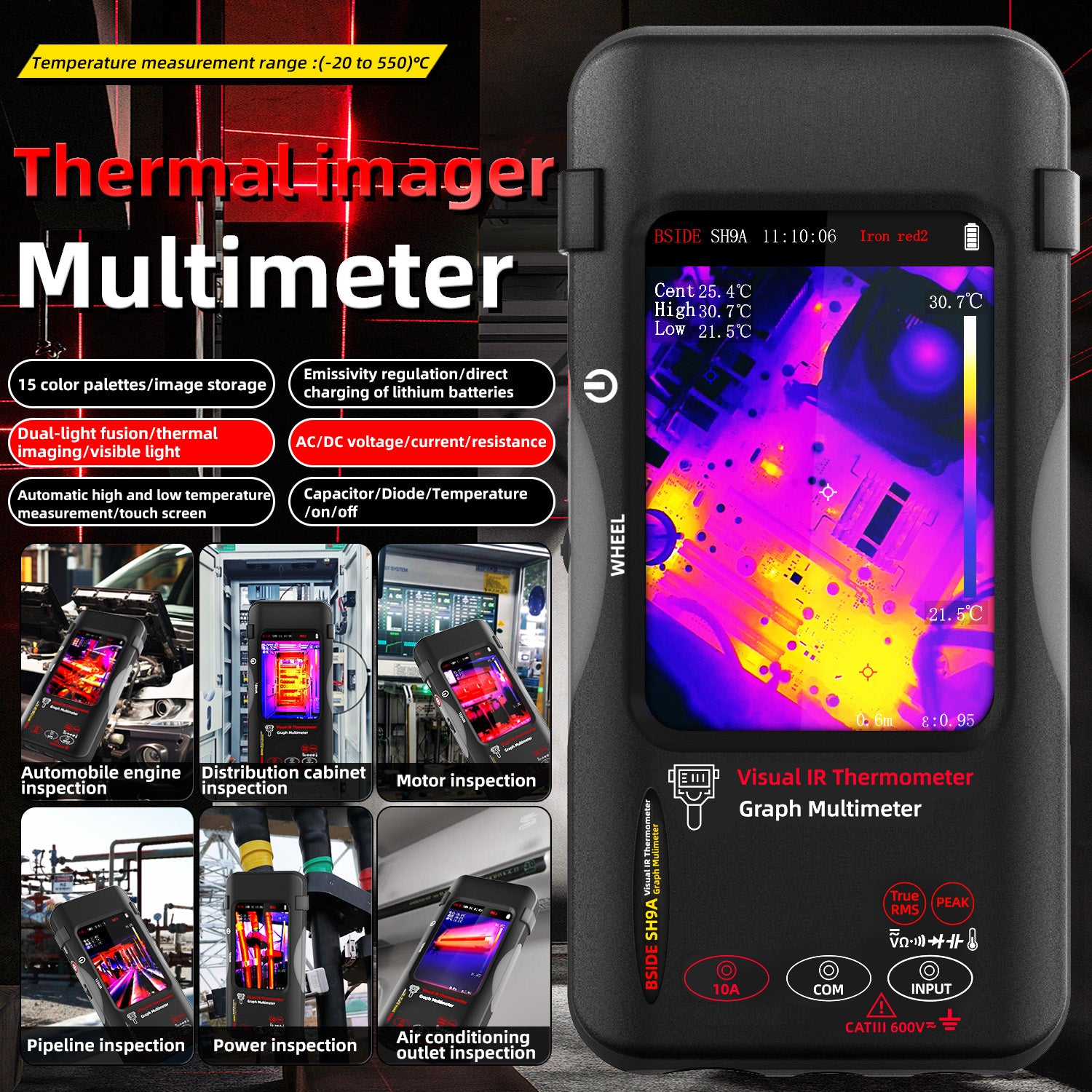

  • [Dual-Light Fusion]: Handheld thermal imager with dual-light fusion overlays regular and thermal images for enhanced visibility, making it ideal for professional inspections and industrial troubleshooting.

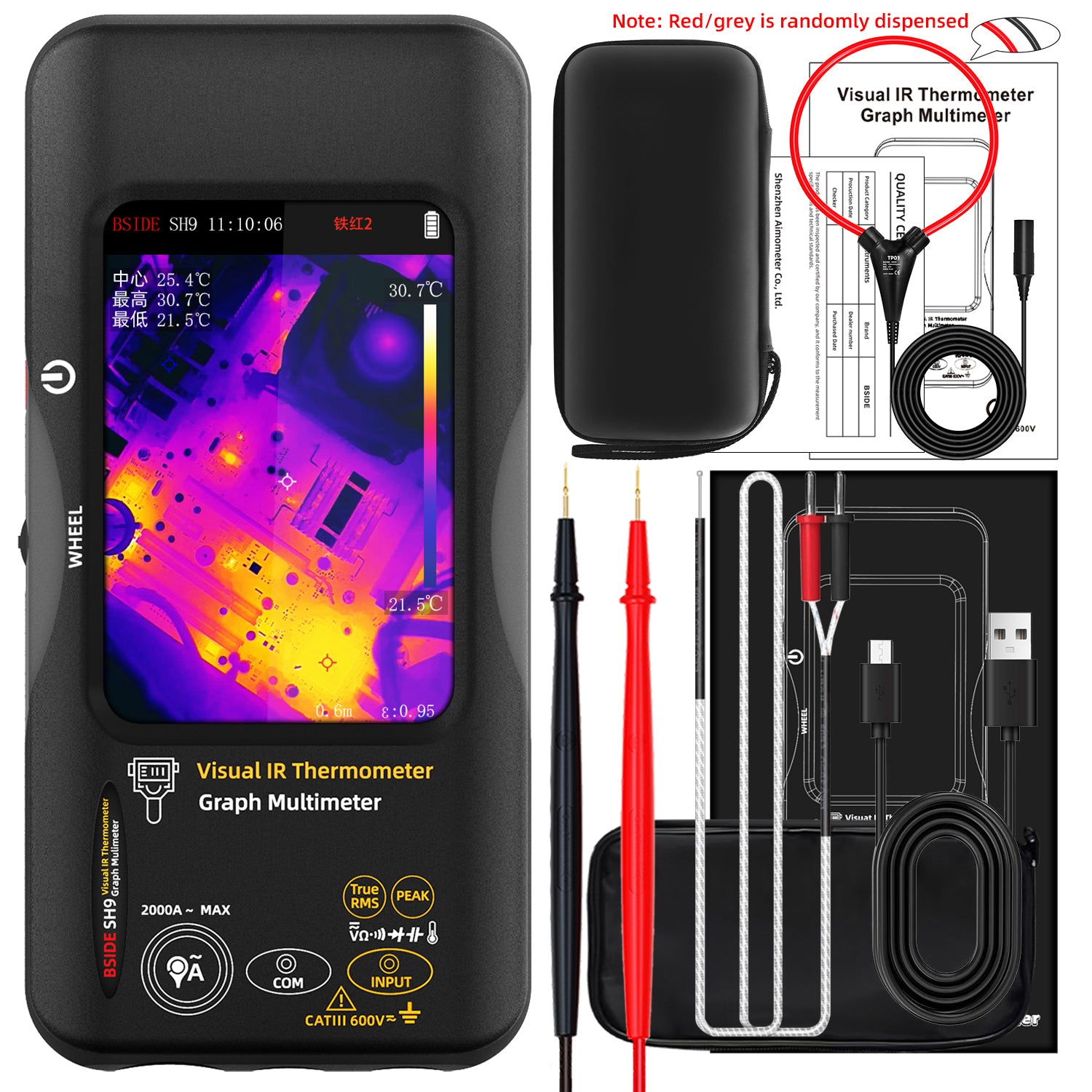

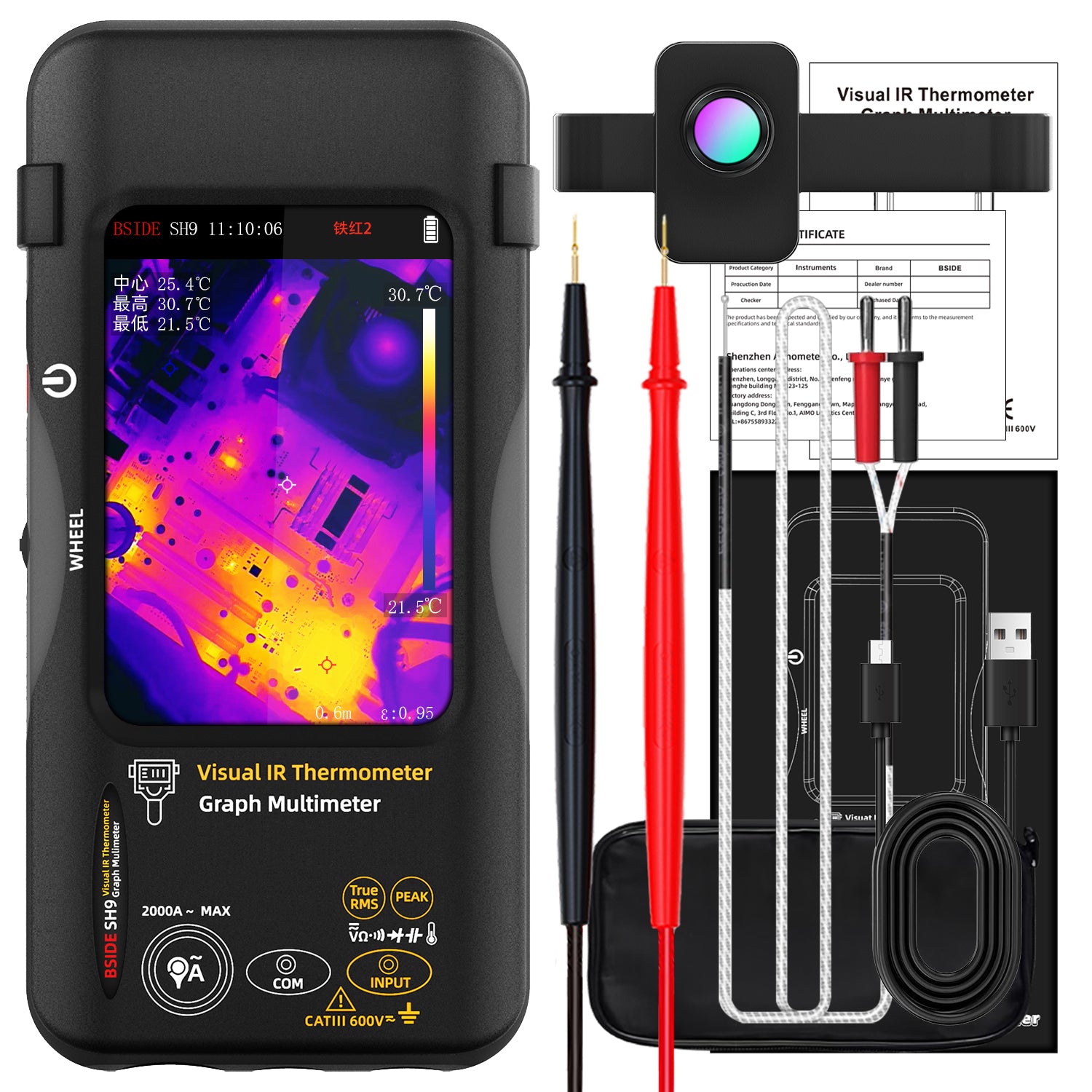

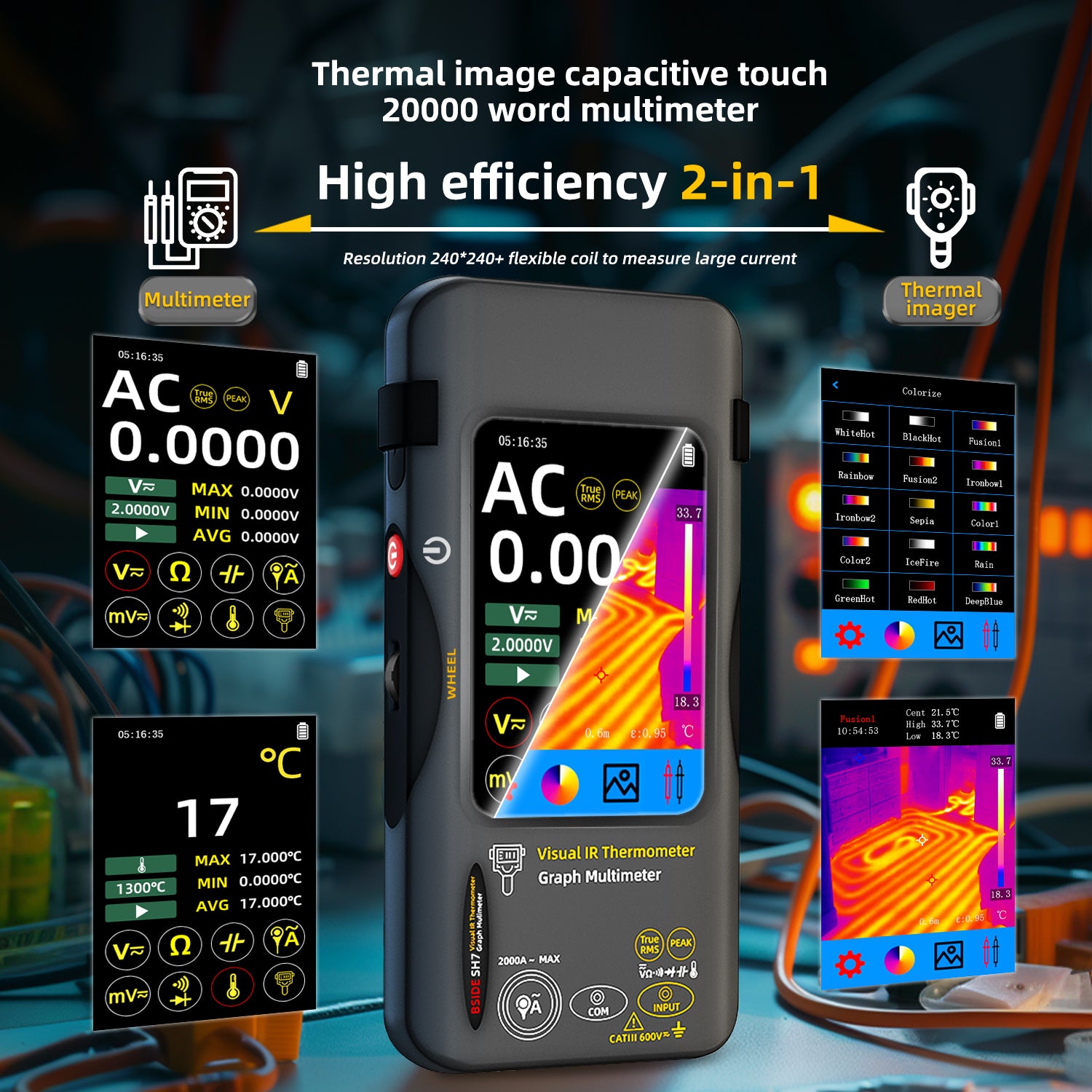

  • [20000 Counts Multimeter]: BSIDE SH9 Infrared camera integrated multimeter, which measures flexible ac current clamp, capacitance, diode, temperature, ac and dc voltage, resistance, continuity, etc.
  • [Recording Mode]: Smart digital multimeter can records the graph of tested data over time. Records up to 3 measurements.

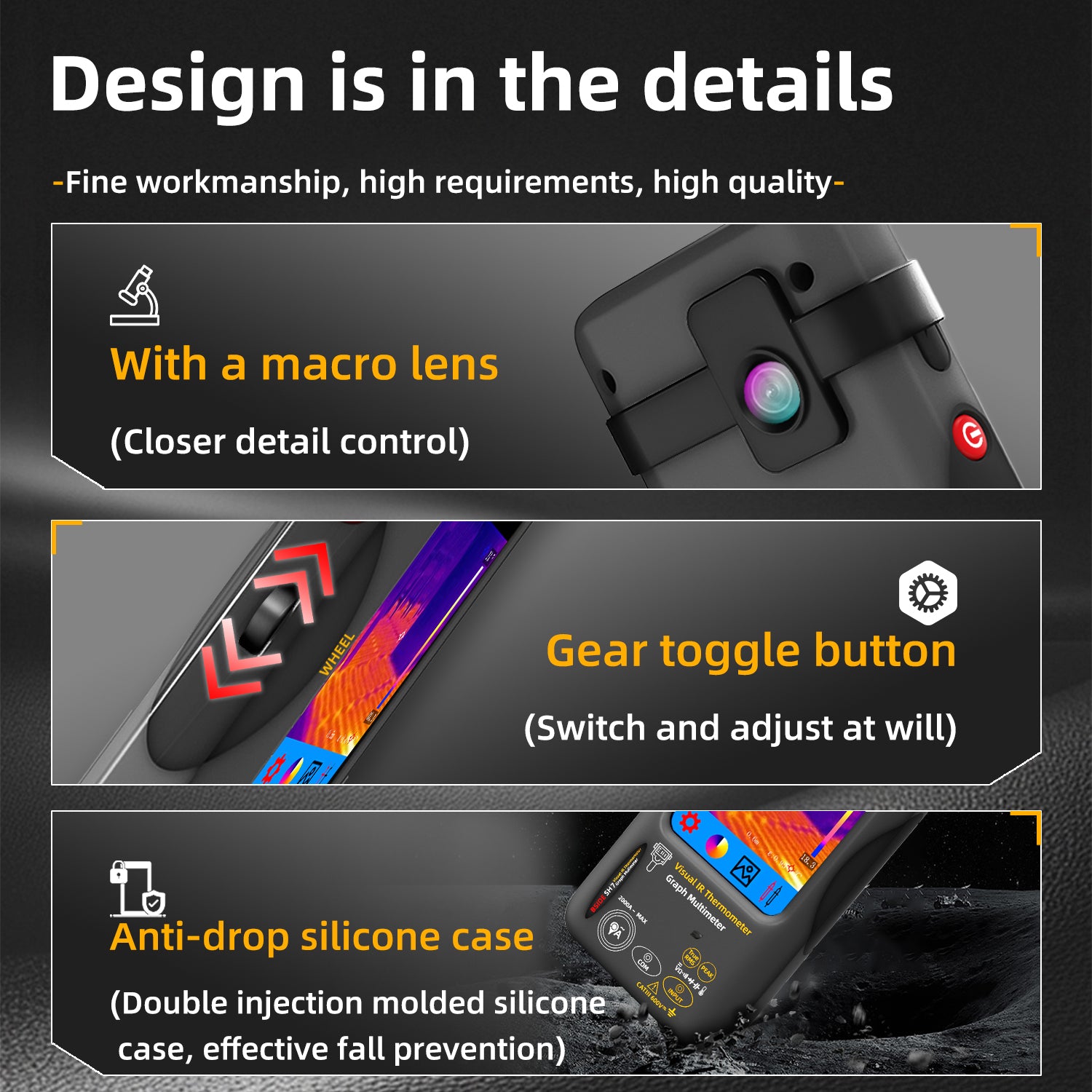

  • [with Macro Lens]: Thermal imager with macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components, etc. Working object distance: 35mm; Magnification: 0.3X.
  • [15 Thermal Palettes]: Infrared multimeter has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.
  • [3.98” Touch TFT Screen]: IR multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.
  • [Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20℃to 550℃(-4℉ to 1022℉).
  • [Flexible AC Current Clamp Measurement]: Digital multimeter tester measures flexible ac current clamp accurately up to 2000A. The flexible clamp wire were not included.

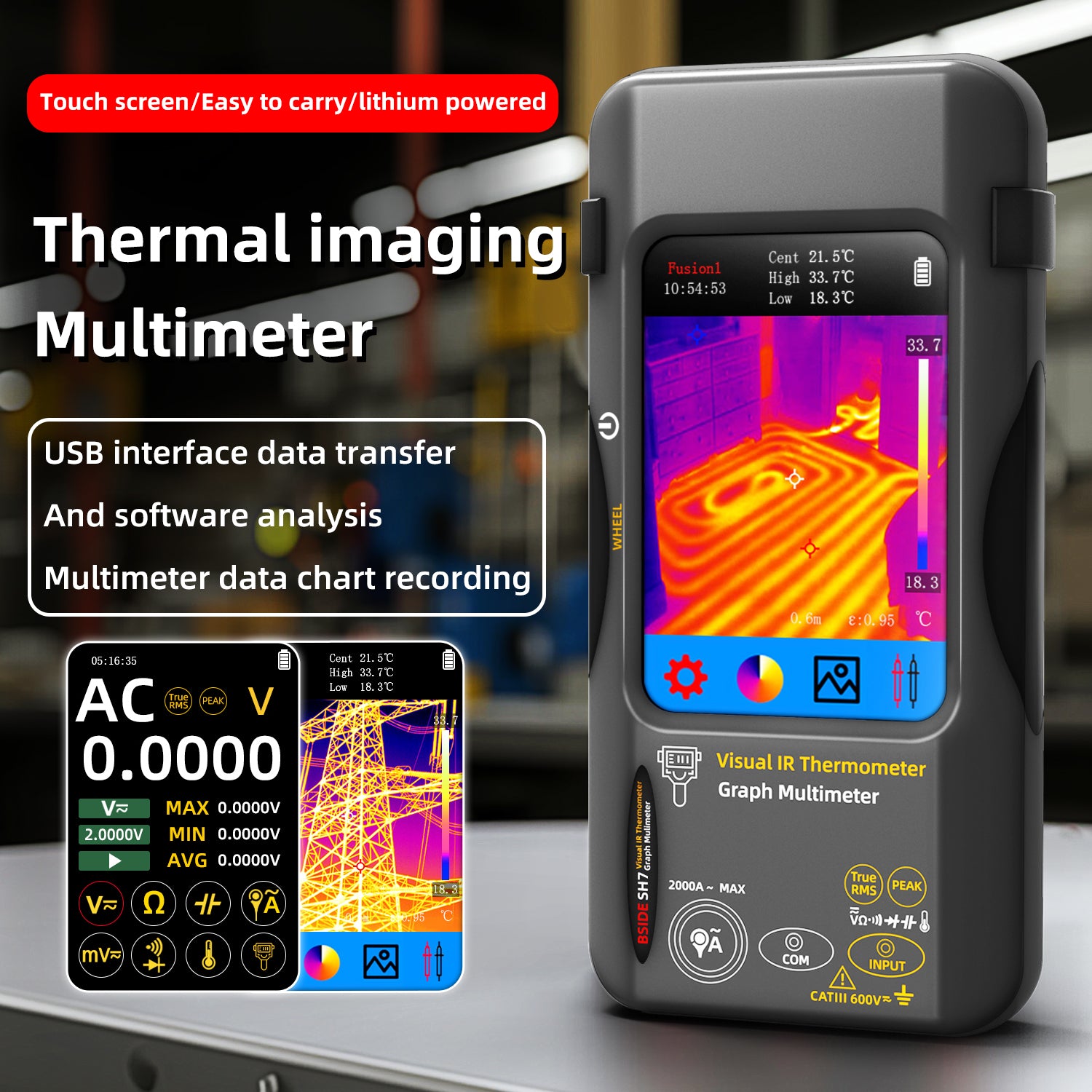

  • [Efficient Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 15,000 images.

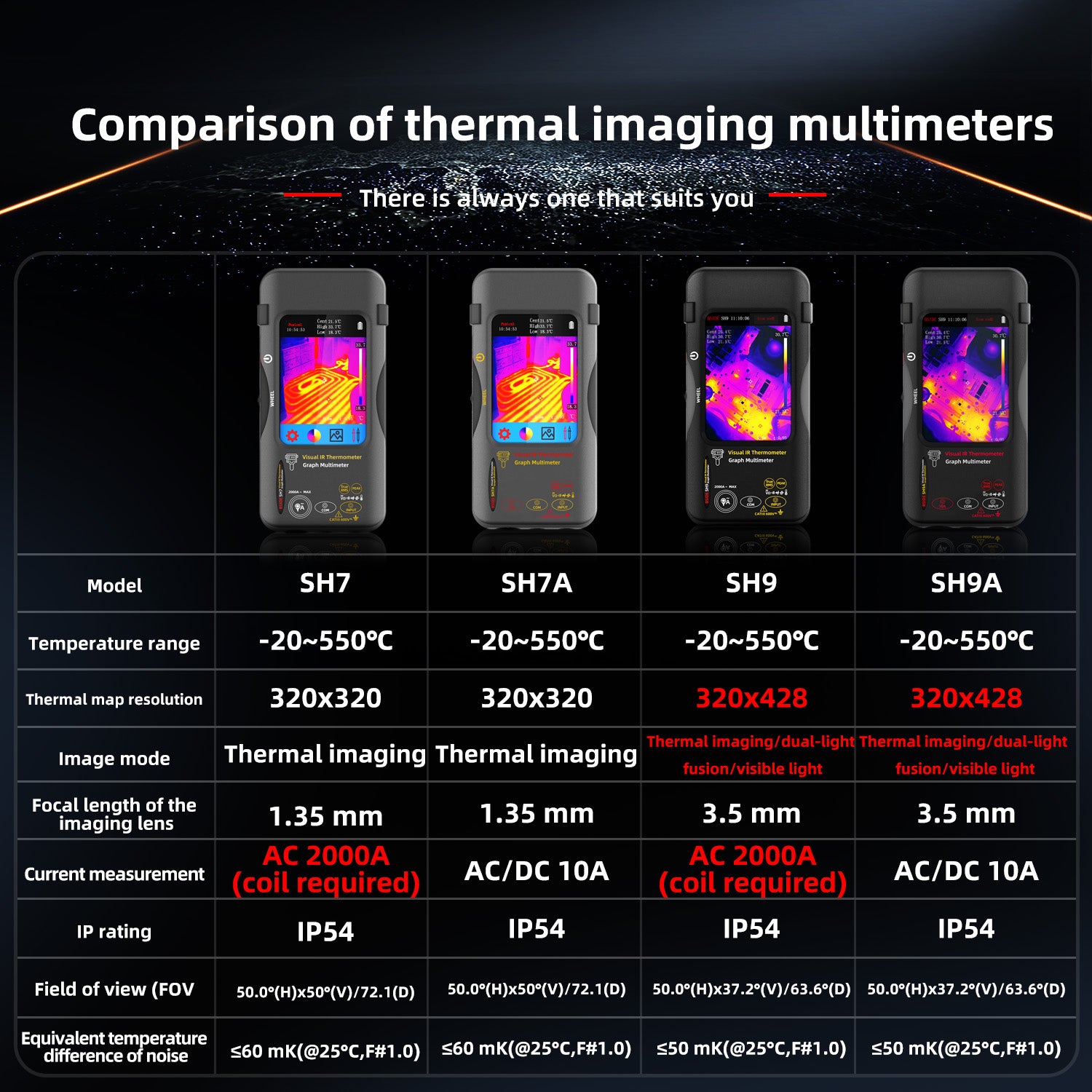

  • Detailed data and differences are shown in the parameter chart below.





    Attention:

    About the accessories!

    Flexible current clamp TP01

    TP01 is only suitable for 50Hz AC current!

    Poor anti-interference ability, not suitable for complex lines and dense line environment, can not be used in the distribution room, distribution cabinet.

    Suitable for: individual lines, large cables, individual wires.

    Macro lens M1

    M1 focal length 35MM, suitable for close detection of circuit boards.
