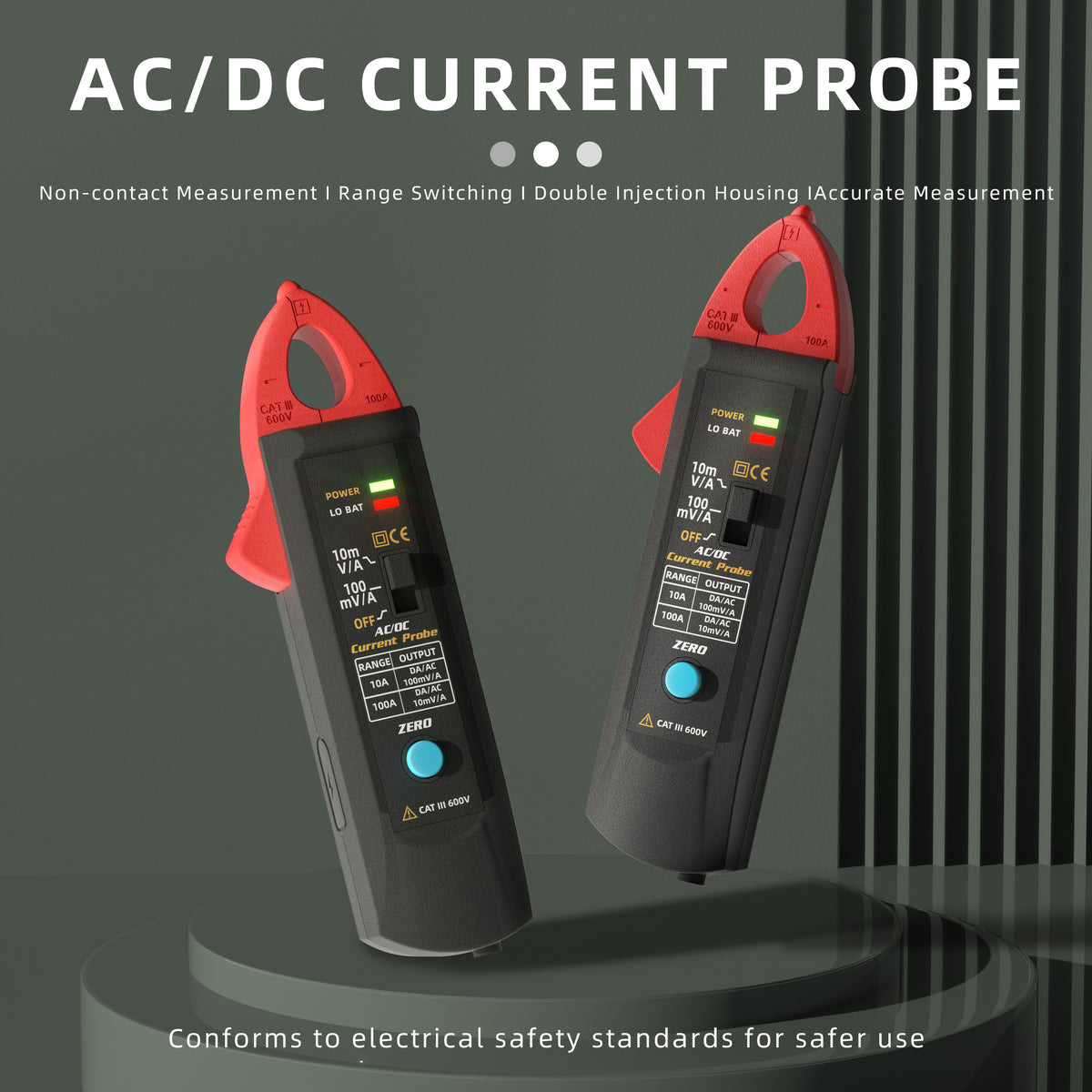

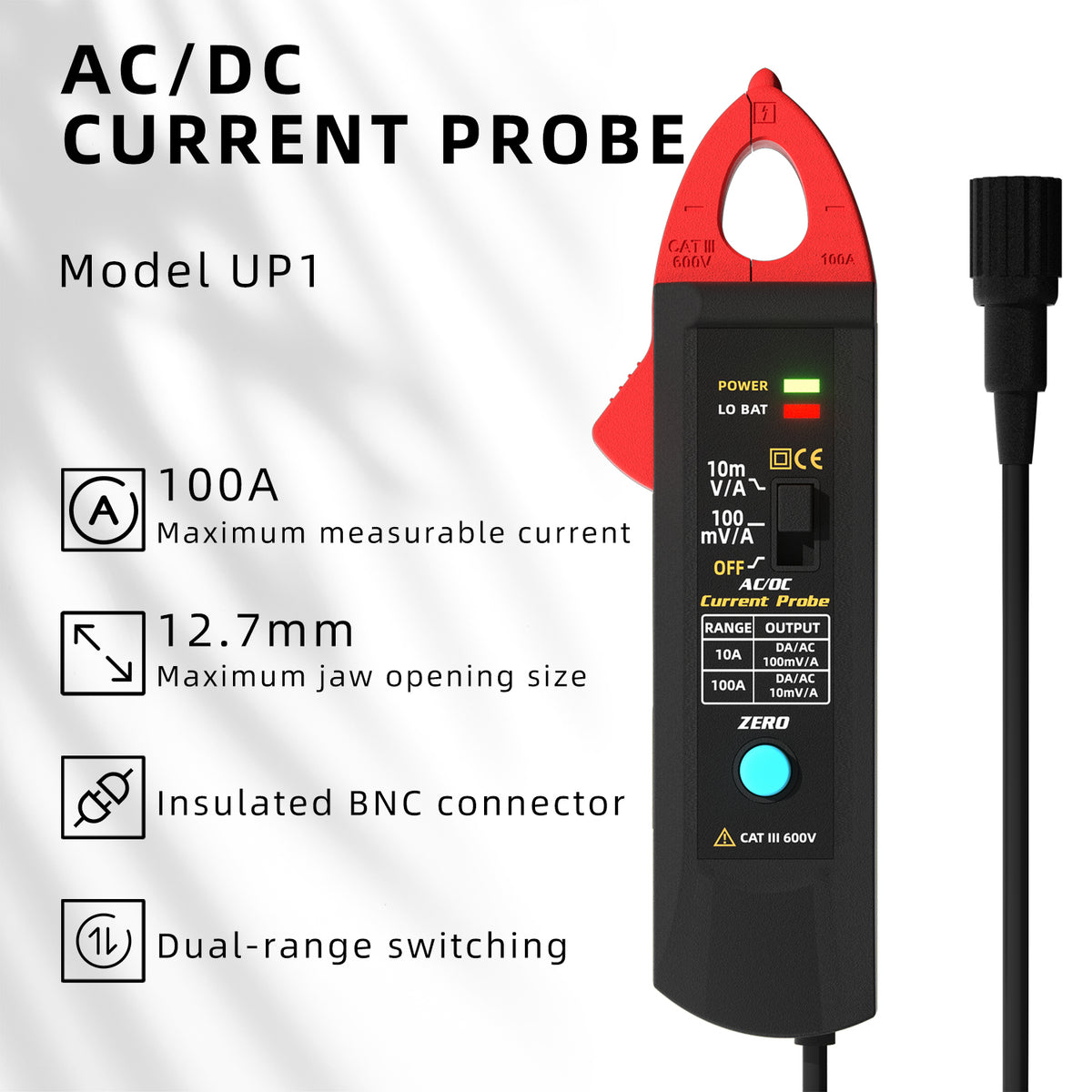

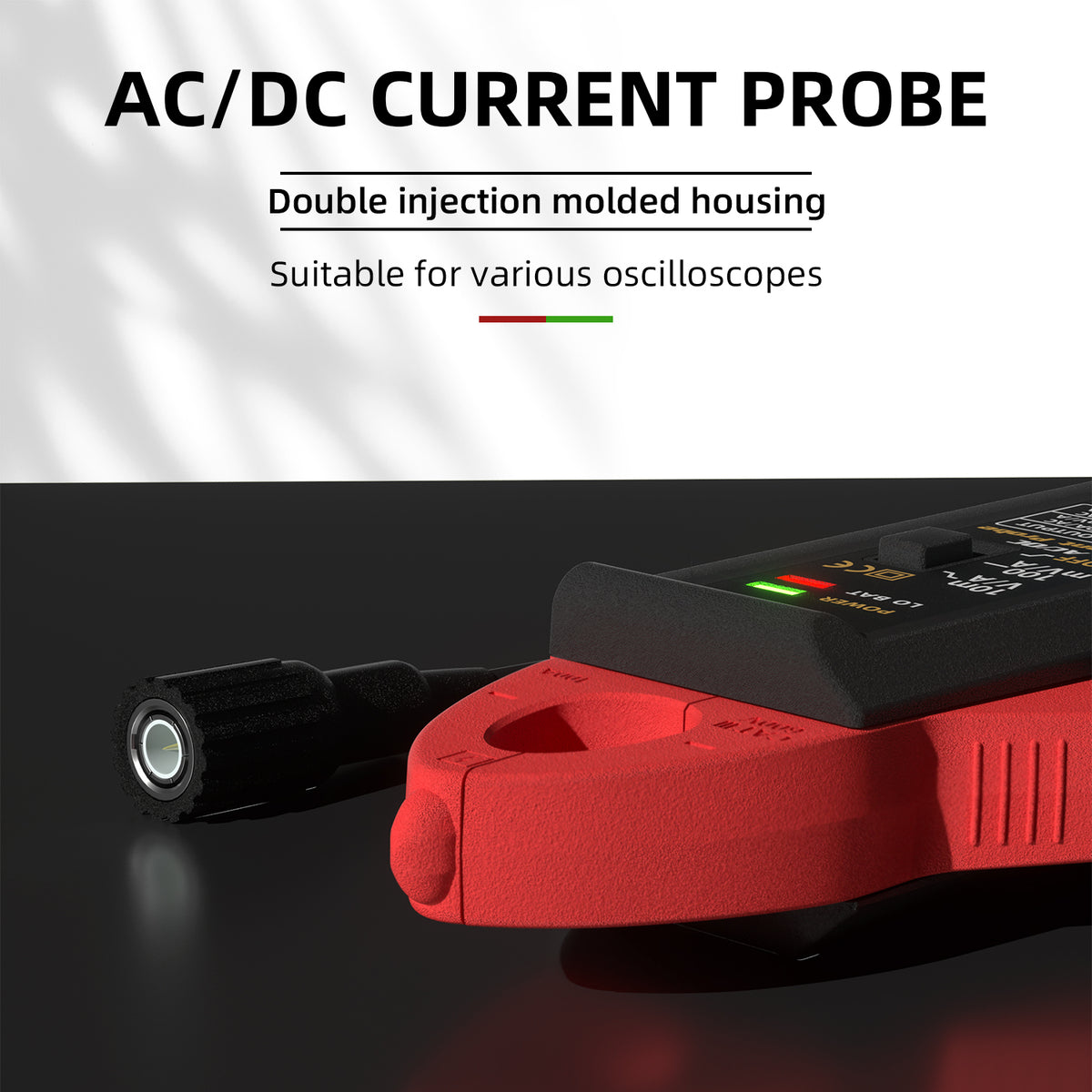

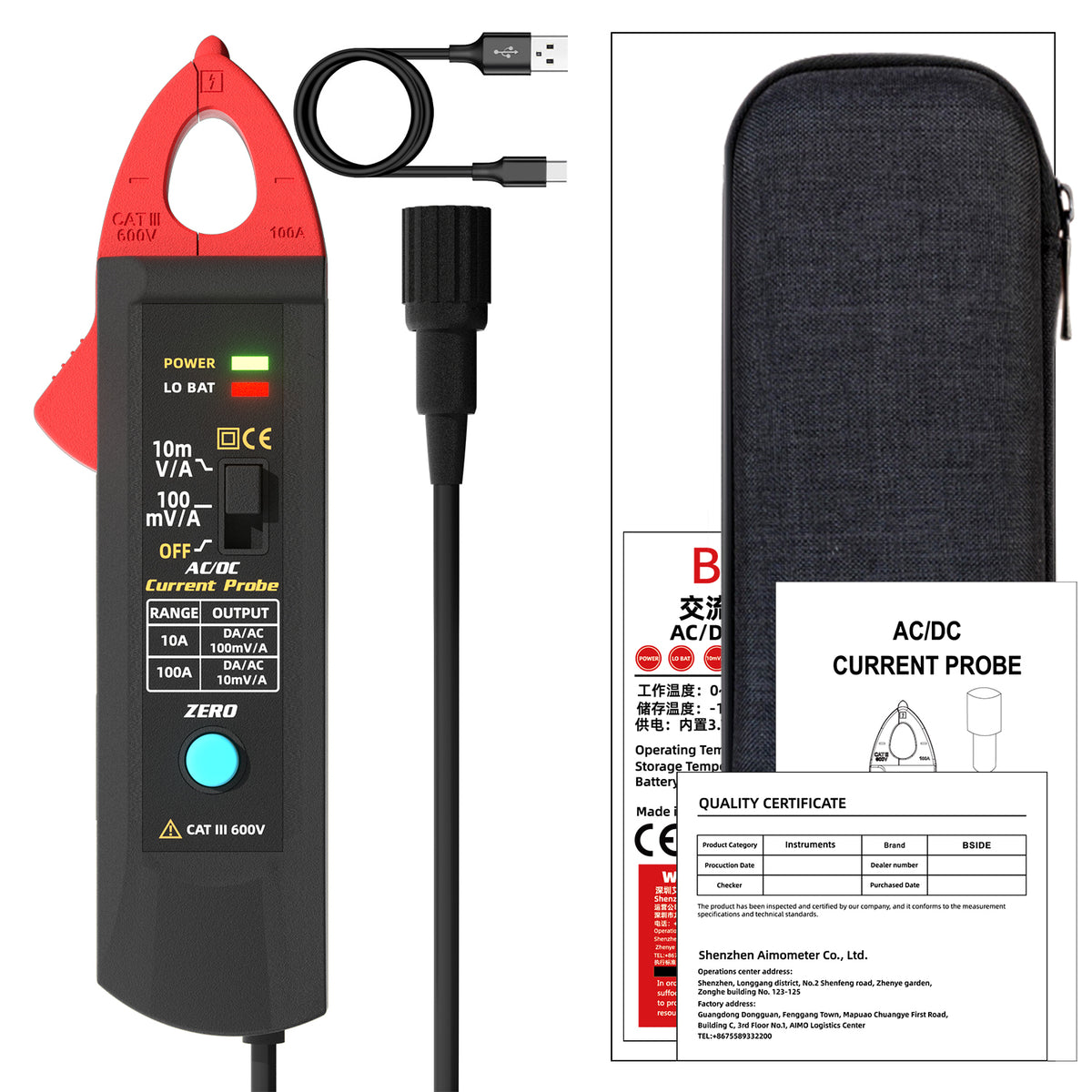

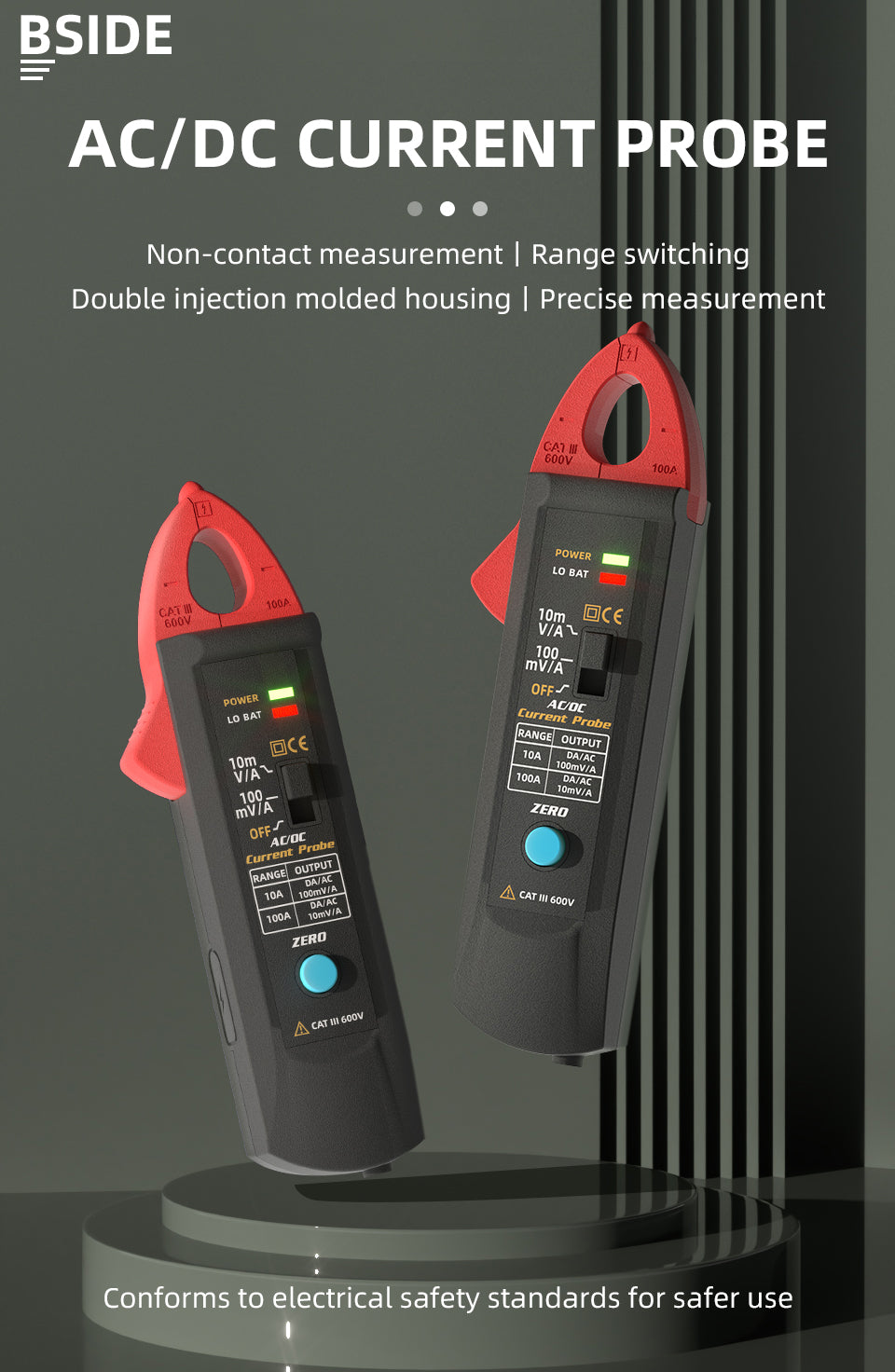

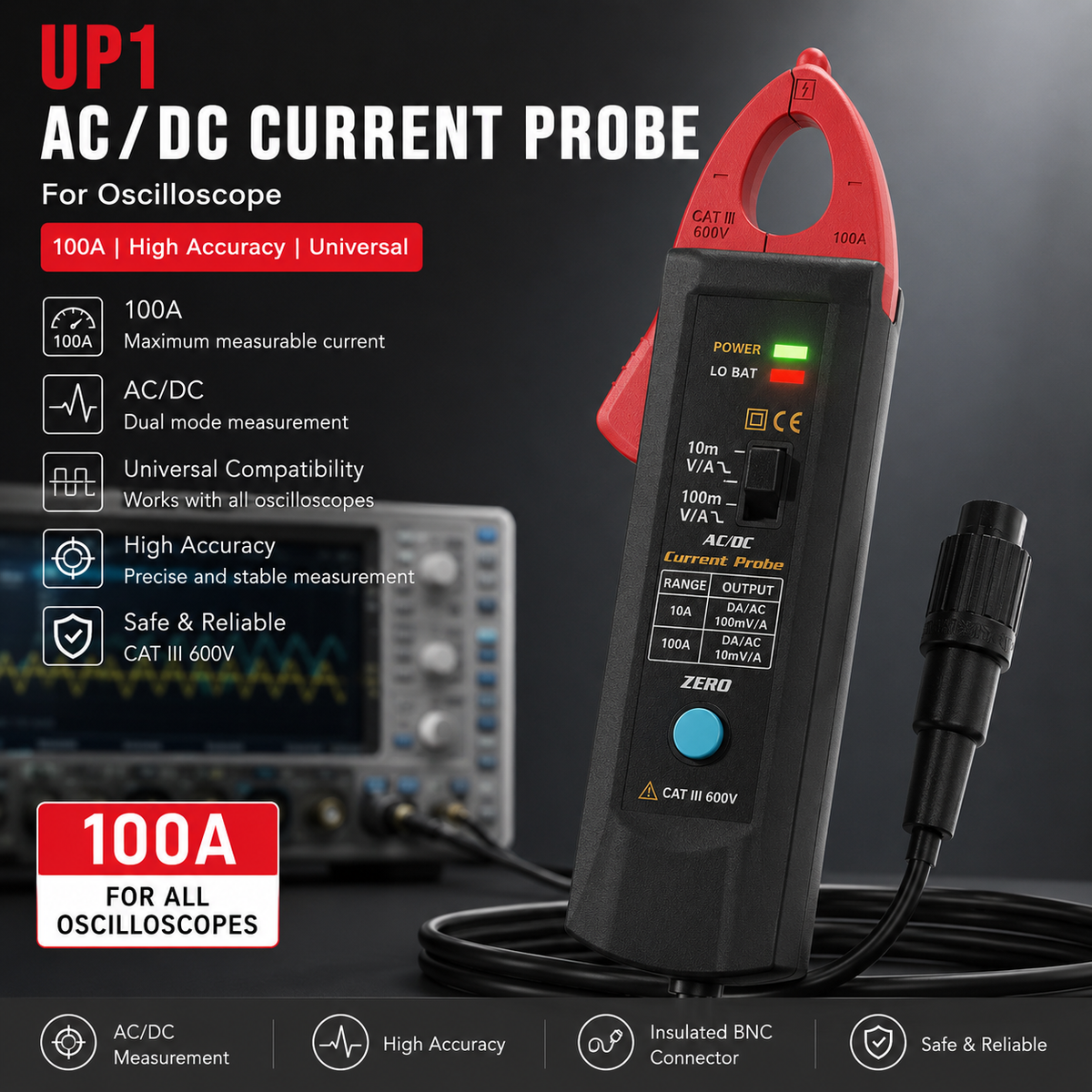

BSIDE UP1 Oscilloscope Current Probe, AC/DC Current Clamp 100A, 10A/100A Dual Range, 10mV/A and 100mV/A Output, 20kHz AC Bandwidth, Rechargeable Li-Ion Battery, CAT III 600V

Key Product Features

1. AC/DC CURRENT MEASUREMENT: The BSIDE UP1 oscilloscope current probe measures both AC and DC current, helping users observe current signals and analyze electrical circuits with a compatible oscilloscope.

2. DUAL CURRENT RANGES UP TO 100A: Select the 10A or 100A range to suit different measurement needs. The probe supports current ranges from 10mA to 100A DC, with range-dependent specifications and accuracy.

3. TWO OUTPUT SENSITIVITIES: Choose between 100mV/A and 10mV/A output settings. The 100mV/A setting provides greater output sensitivity for lower-current measurements, while 10mV/A supports higher-current measurements up to 100A. Configure the oscilloscope scale according to the selected output ratio.

4. AC FREQUENCY RESPONSE UP TO 20kHz: The specified AC measurement frequency ranges extend from 40Hz to 20kHz, depending on the selected range. Suitable for observing current waveforms in electronic circuits, power systems, and equipment troubleshooting.

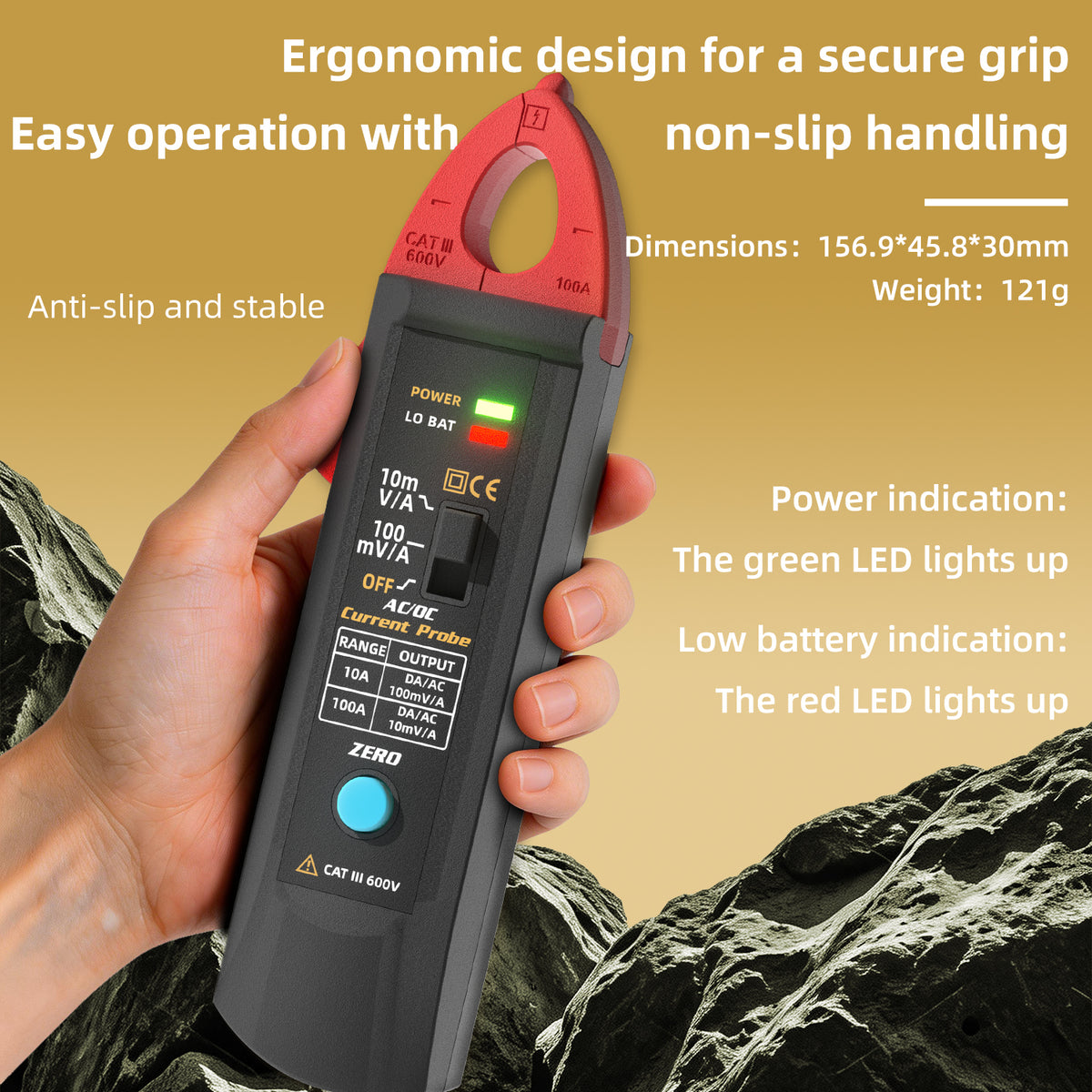

5. COMPACT, RECHARGEABLE DESIGN: Measuring approximately 156.9 × 45.8 × 30mm and weighing about 121g, the UP1 is easy to carry and handle. Its built-in 3.7V lithium-ion battery is rechargeable. The 30mm jaw opening accommodates conductors within the available opening, and the device is marked CAT III 600V.

Product Description

Upgrade your oscilloscope current measurement setup with the BSIDE UP1 AC/DC Oscilloscope Current Probe. Designed to convert measured current into a voltage signal, the UP1 helps users view current waveforms on a compatible oscilloscope without inserting a conventional ammeter in series with the circuit.

With selectable 10A and 100A ranges and two output sensitivities (100mV/A and 10mV/A), the UP1 accommodates a broad range of current measurement tasks. Its AC measurement frequency response extends up to 20kHz, depending on the selected measurement range. Range-specific accuracy specifications help users select the appropriate setting for their application.

The compact clamp design makes it practical for electronics troubleshooting, circuit analysis, power equipment testing, and other general electrical measurement tasks. A built-in rechargeable 3.7V lithium-ion battery provides portable operation, while the power and low-battery indicator lights help users monitor the device's status.

Specifications

• Brand: BSIDE

• Model: UP1

• Product Type: Oscilloscope Current Probe

• Measurement: AC/DC current

• DC Current Range: 10mA–100A, depending on selected range

• AC Current Range: 10mA–100A, depending on frequency and selected range

• Output Sensitivity: 100mV/A and 10mV/A

• AC Frequency Range: 40Hz–20kHz, depending on selected range

• Jaw Opening: 30mm

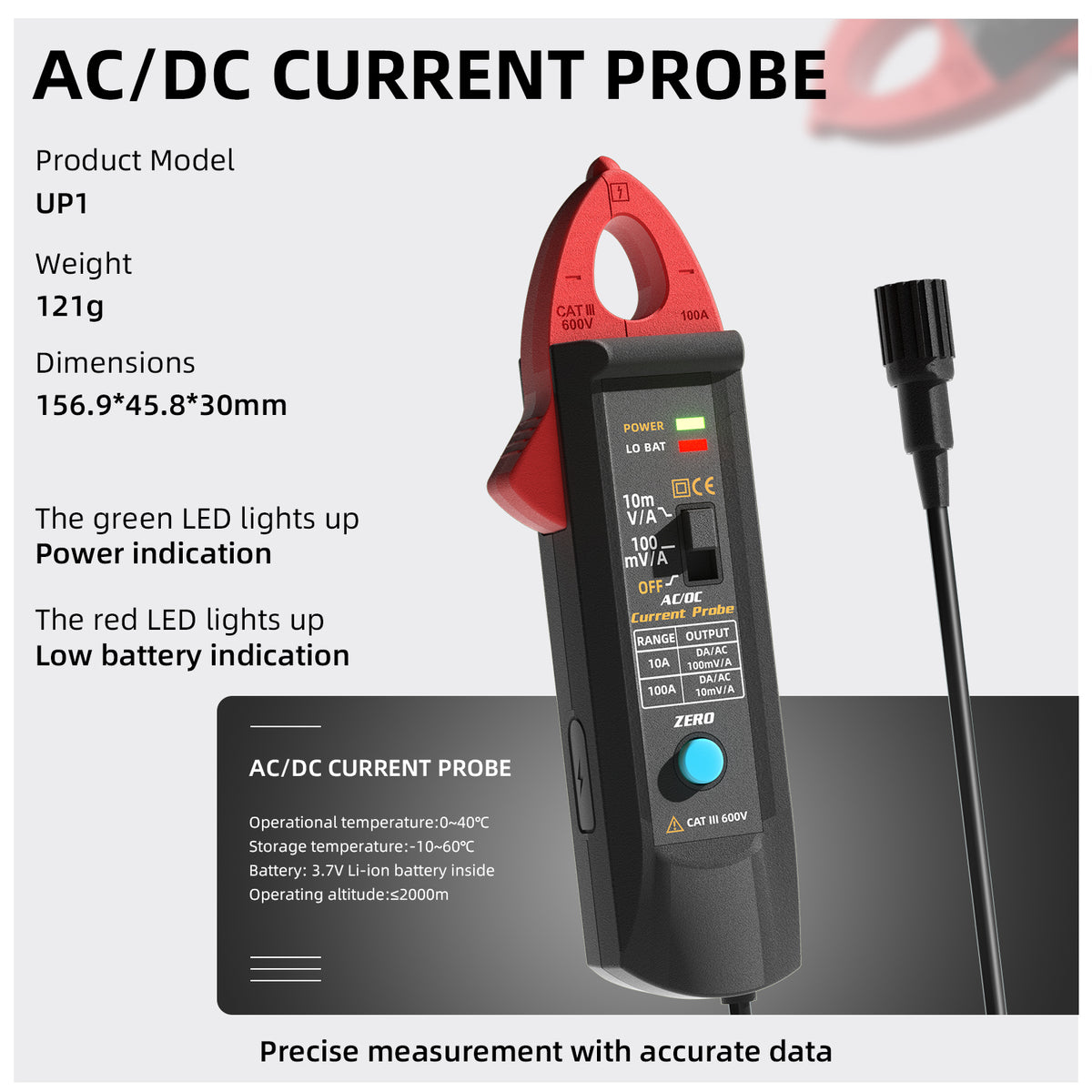

• Dimensions: 156.9 × 45.8 × 30mm

• Weight: 121g

• Battery: Built-in 3.7V rechargeable Li-ion battery

• Safety Marking: CAT III 600V

Suggested Applications

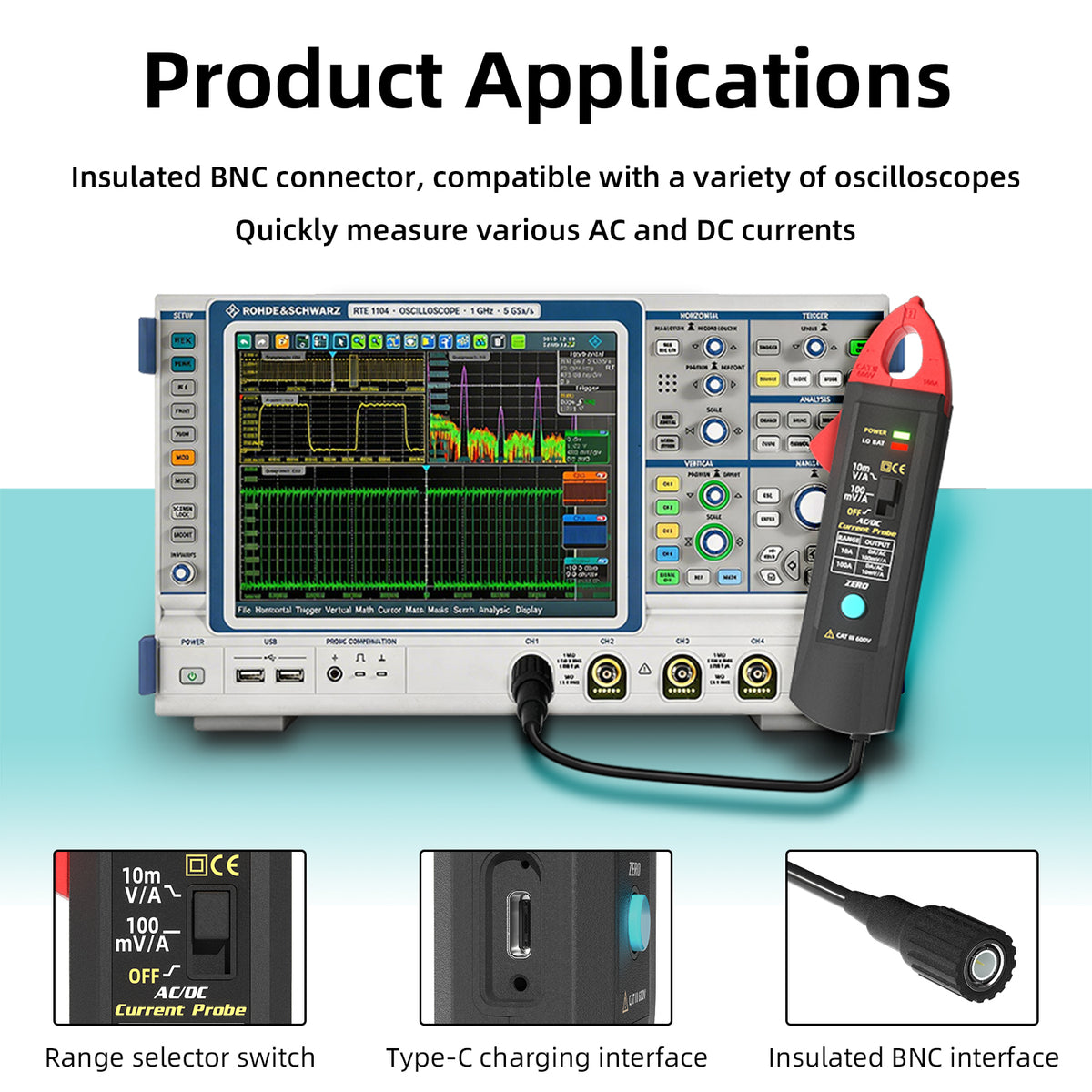

• Current waveform observation with compatible oscilloscopes

• Electronic circuit troubleshooting

• Power supply and power electronics testing

• Electrical equipment diagnostics

• AC/DC current signal analysis

Compatibility Note: Confirm the UP1 output connector, oscilloscope input requirements, and supported voltage scale before use. The oscilloscope must be configured for the selected 10mV/A or 100mV/A conversion ratio. Always follow the product manual and applicable electrical safety procedures.
